WIZ830MJ
WIZ830MJ

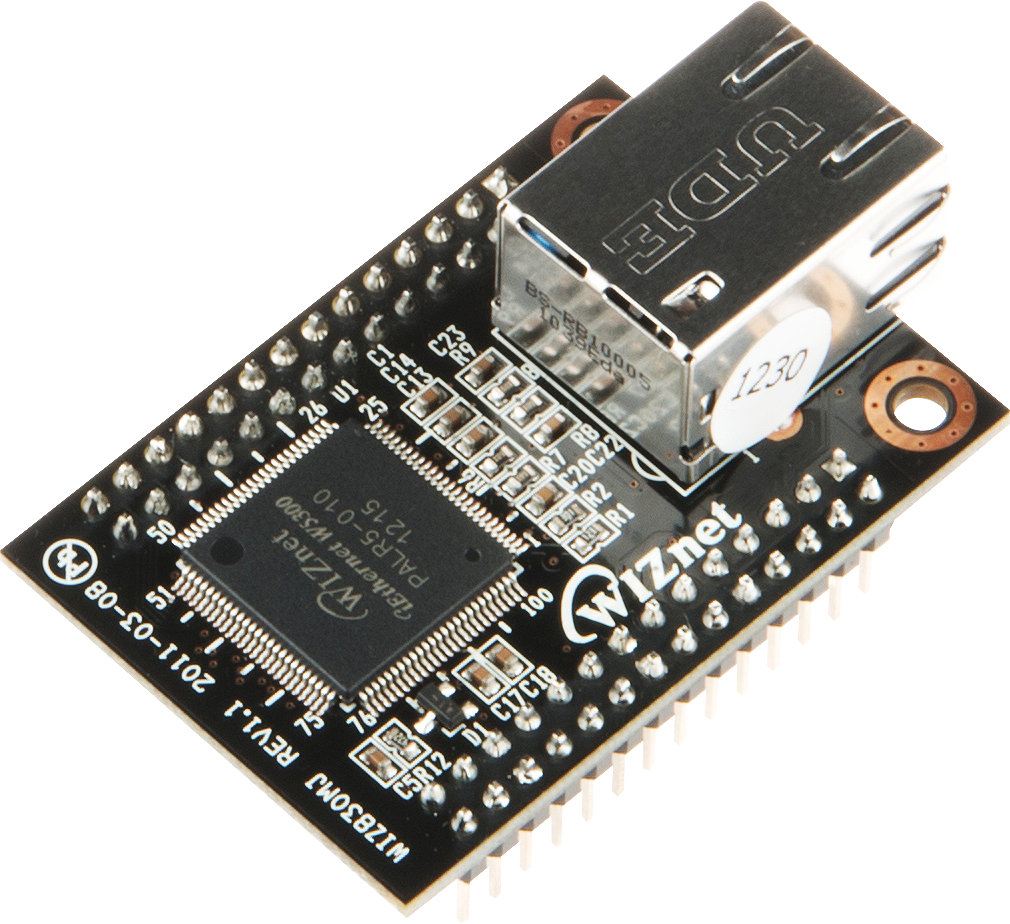

The WIZ830MJ is a high-performance Ethernet module based on the W5300 hardwired TCP/IP chip with integrated MAC and PHY.
It includes an onboard RJ45 (MAG-JACK) and necessary interface logic, allowing developers to rapidly add Ethernet functionality to embedded systems.
Designed for easy integration via a 16/8-bit parallel MCU BUS interface, WIZ830MJ offers outstanding throughput and stability for industrial applications.

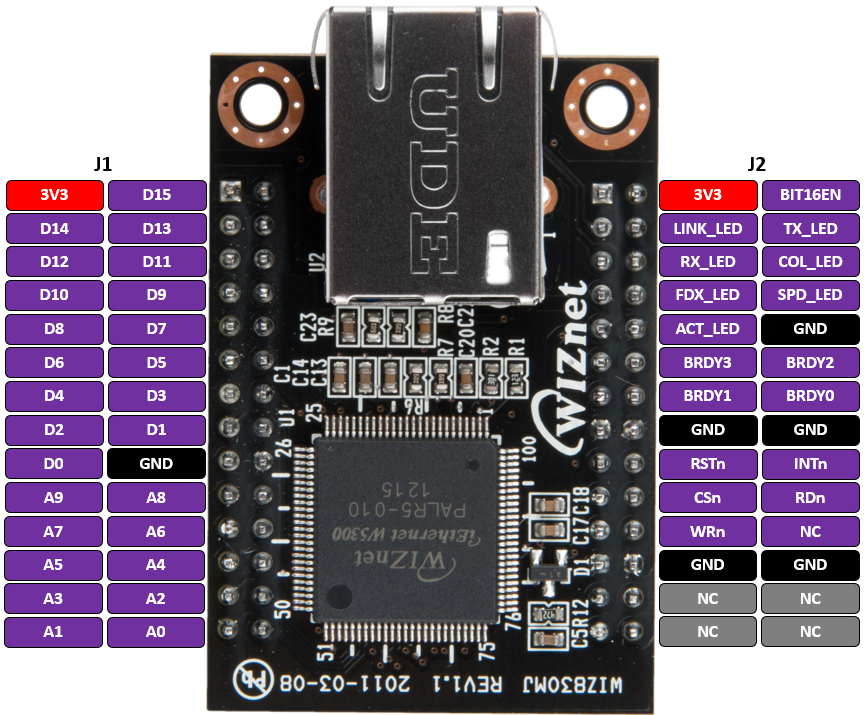

Pin Information
- All Pins
J1
| Pin | Type | Name | Description |
|---|---|---|---|
| 1 | P | 3V3D | 3.3 V Power |
| 2 | I/O | D15 | BUS : Data Bit 15 |
| 3 | I/O | D14 | BUS : Data Bit 14 |
| 4 | I/O | D13 | BUS : Data Bit 13 |
| 5 | I/O | D12 | BUS : Data Bit 12 |
| 6 | I/O | D11 | BUS : Data Bit 11 |
| 7 | I/O | D10 | BUS : Data Bit 10 |
| 8 | I/O | D9 | BUS : Data Bit 9 |
| 9 | I/O | D8 | BUS : Data Bit 8 |
| 10 | I/O | D7 | BUS : Data Bit 7 |
| 11 | I/O | D6 | BUS : Data Bit 6 |
| 12 | I/O | D5 | BUS : Data Bit 5 |
| 13 | I/O | D4 | BUS : Data Bit 4 |
| 14 | I/O | D3 | BUS : Data Bit 3 |
| 15 | I/O | D2 | BUS : Data Bit 2 |
| 16 | I/O | D1 | BUS : Data Bit 1 |
| 17 | I/O | D0 | BUS : Data Bit 0 |
| 18 | P | GND | Ground |
| 19 | I/O | A9 | BUS : Address line A9 |
| 20 | I/O | A8 | BUS : Address line A8 |
| 21 | I/O | A7 | BUS : Address line A7 |
| 22 | I/O | A6 | BUS : Address line A6 |
| 23 | I/O | A5 | BUS : Address line A5 |
| 24 | I/O | A4 | BUS : Address line A4 |
| 25 | I/O | A3 | BUS : Address line A3 |
| 26 | I/O | A2 | BUS : Address line A2 |
| 27 | I/O | A1 | BUS : Address line A1 |
| 28 | I/O | A0 | BUS : Address line A0 |
J2
| Pin | Type | Name | Description |
|---|---|---|---|
| 1 | P | 3V3D | 3.3 V Power |
| 2 | I | BIT16_EN | 16/8 bit data bus select High : 16 bit data bus Low : 8 bit data bus |
| 3 | O | /LINKLED | Link status LED (active low) |
| 4 | O | /TXLED | Transmit activity LED (active low) |
| 5 | O | /RXLED | Receive activity LED (active low) |
| 6 | O | /COLLED | Collision LED (active low) |
| 7 | O | /FDXLED | Full duplex LED (active low) |
| 8 | O | /SPDLED | Speed status LED (active low) |
| 9 | O | /ACTLED | Link/activity LED (active low) |
| 10 | P | GND | Ground |
| 11 | O | BRDY3 | Bus Ready 3 signal |
| 12 | O | BRDY2 | Bus Ready 2 signal |
| 13 | O | BRDY1 | Bus Ready 1 signal |
| 14 | O | BRDY0 | Bus Ready 0 signal |
| 15 | P | GND | Ground |
| 16 | P | GND | Ground |
| 17 | I | /RESET | Hardware reset input (active low) |
| 18 | O | /INT | Interrupt output (active low) |
| 19 | I | /CS | Chip select input (active low) |
| 20 | I | /RD | Read strobe input (active low) |
| 21 | I | /WR | Write strobe input (active low) |
| 22 | — | NC | No connect |
| 23 | P | GND | Ground |
| 24 | P | GND | Ground |
| 25 | — | NC | No connect |
| 26 | — | NC | No connect |
| 27 | — | NC | No connect |
| 28 | — | NC | No connect |
Features
- Plug-in network module integrating W5300 hardwired TCP/IP chip, transformer, and RJ45 MAG-JACK
- No external hardware design required for PHY or transformer
- 16/8-bit MCU parallel BUS interface for high data throughput
- Supports 8 independent hardware sockets
- Provides up to 128 KB internal TX/RX buffer memory
- Two PCB through-holes for secure mounting (Ø 3.00 mm)
- Operating temperature: −40 °C to +85 °C
- Ideal for high-performance Ethernet applications
Electrical Characteristics
- DC Characteristics
- Power Dissipation
| Symbol | Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| VDD | Supply voltage | 2.97 | 3.3 | 3.6 | V |
| VIH | High-level input voltage | 2.0 | – | 5.5 | V |
| VIL | Low-level input voltage | –0.3 | – | 0.8 | V |
| VOH | High-level output voltage | 2.4 | 3.3 | – | V |
| VOL | Low-level output voltage | 0.0 | – | 0.4 | V |
| IDD | Operating current VCC 3.3V (Normal) | – | 180 | 250 | mA |
| Symbol | Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| PIA | using the auto-negotiation of internal PHY mode | - | 180 | 250 | mA |
| PIM | using manual configuration of internal PHY mode | - | 175 | 210 | mA |
| PE | using external PHY mode | - | 65 | 150 | mA |
Condition : Vcc 3.3V, Temperature 25°C
Documentation
| Title | Description | Link |
|---|---|---|
| Datasheet | Technical specifications and interface details for WIZ830MJ |  WIZ830MJ Datasheet v1.3 |
Software Resources
- Driver
Driver
| Resource | Description |
|---|---|
 ioLibrary_Driver | Official WIZnet driver library supporting W5300 and other hardwired TCP/IP chips |
| AX1.zip | AX1 Loopback Test Program (install version) |
Note: The ioLibrary_Driver provides TCP/IP stack, DHCP, DNS, and other Internet protocols
for WIZnet’s W5x00/W5300 series. It is MCU-independent and supports embedded Ethernet applications.
Hardware Resources
| Title | Revision | Description | Download | Notes |
|---|---|---|---|---|
| schematic & Partlist | 1.1 | Circuit diagram and BOM for hardware reference | ZIP | — |

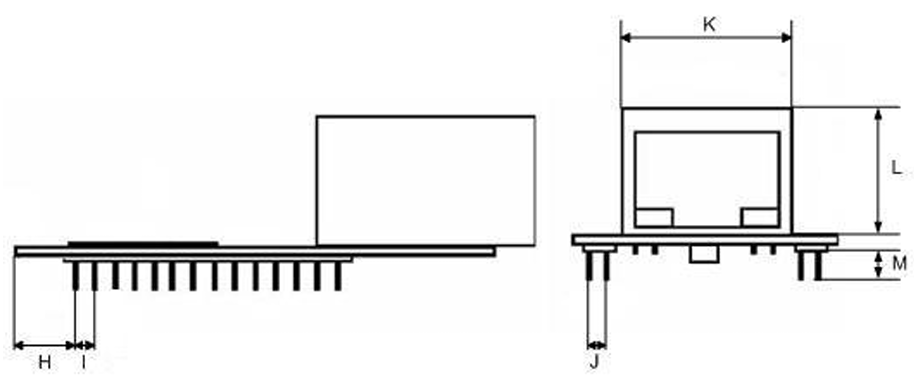

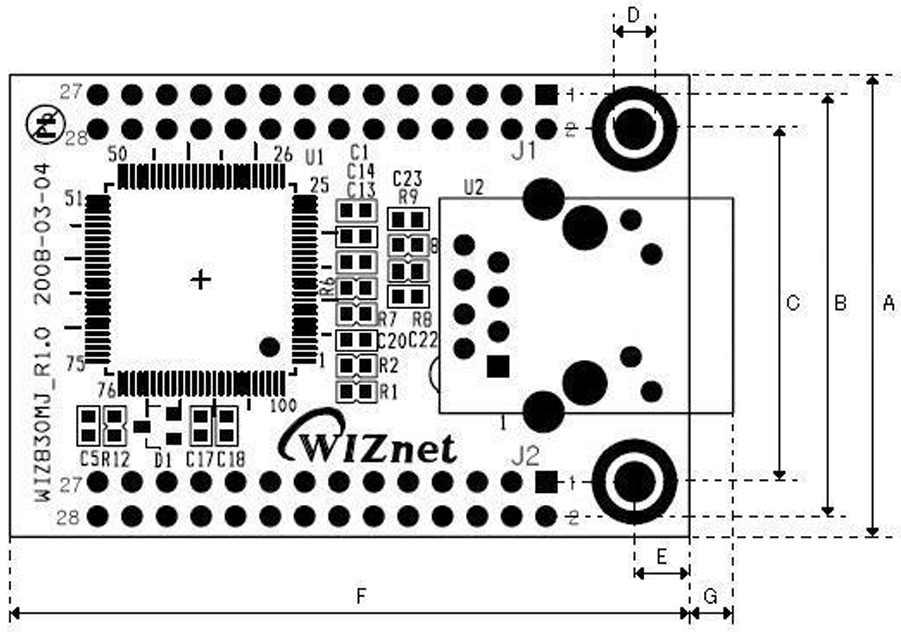

Mechanical Information
| Symbols | Dimensions (mm) |
|---|---|
| A | 34.00 |
| B | 30.48 |
| C | 25.40 |
| D | 3.40 |
| E | 4.00 |
| F | 50.00 |
| G | 3.30 |
| H | 6.50 |
| I | 2.54 |
| J | 2.54 |
| K | 15.90 |
| L | 13.50 |
| M | 6.00 |
- Form factor: Plug-in ioModule with RJ45 MAG-JACK
- Pin pitch: 2.54 mm
- Mounting holes: Ø 3.00 mm × 2
