WIZ811MJ
WIZ811MJ

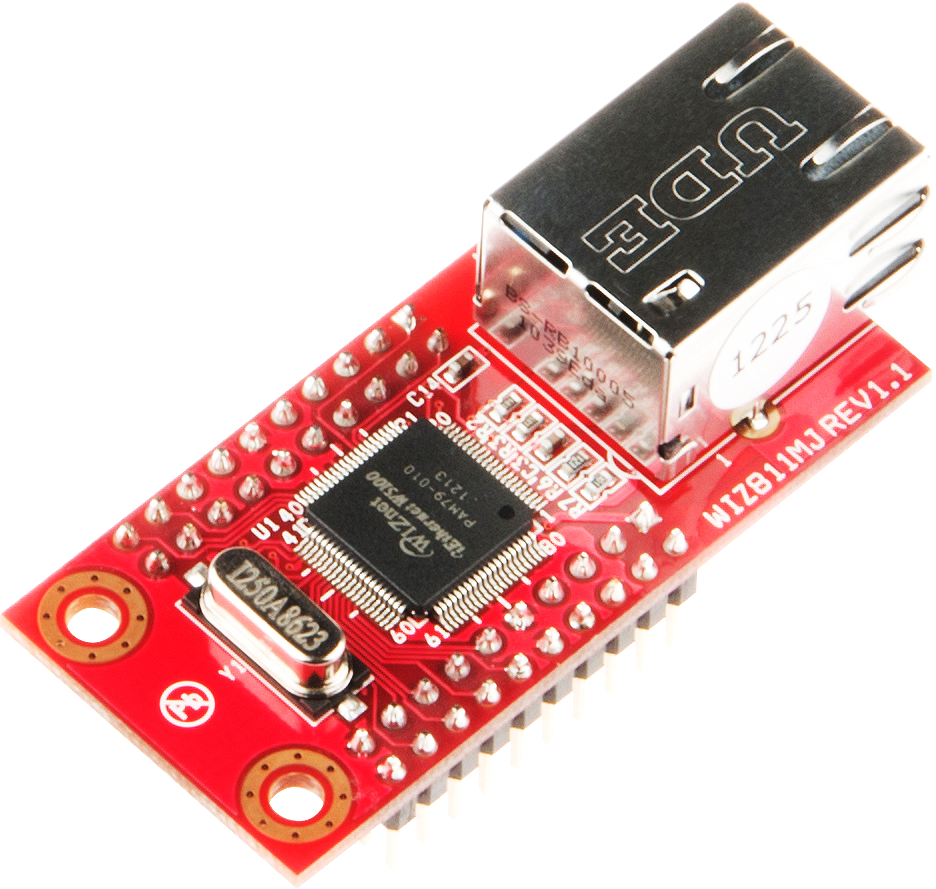

The WIZ811MJ is a plug-in Ethernet module featuring the W5100 hardwired TCP/IP chip with integrated PHY and RJ45 (MAG-JACK).
It allows users to easily add Ethernet functionality to embedded systems without complex hardware design.
The module supports both MCU BUS and high-speed SPI interfaces for flexible system integration.

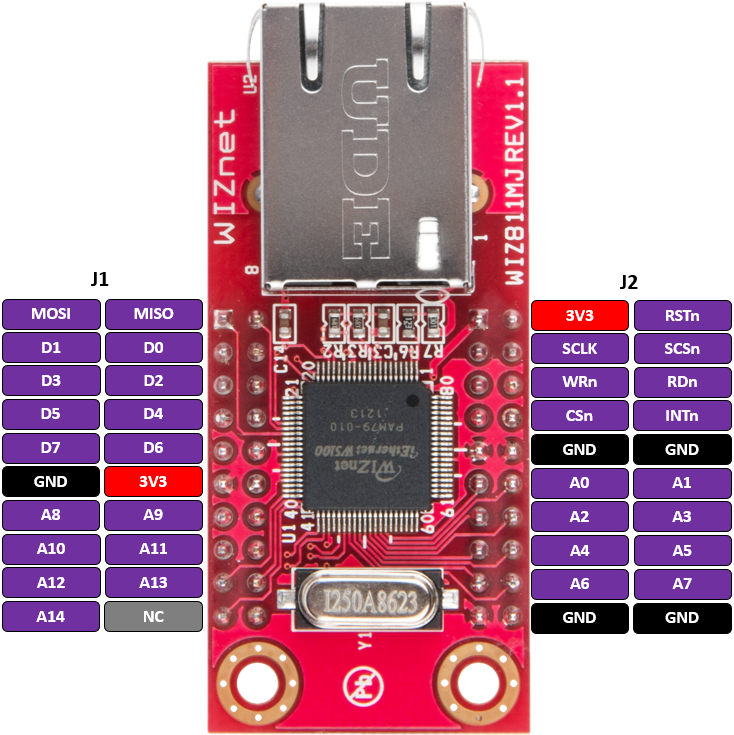

Pin Information
- All Pins
J1
| Pin | Type | Name | Description |
|---|---|---|---|
| 1 | I | MOSI | SPI : Master-Out / Slave-In |
| 2 | O | MISO | SPI : Master-In / Slave-Out |
| 3 | I/O | D1 | BUS : D1 |
| 4 | I/O | D0 | BUS : D0 |
| 5 | I/O | D3 | BUS : D3 |
| 6 | I/O | D2 | BUS : D2 |
| 7 | I/O | D5 | BUS : D5 |
| 8 | I/O | D4 | BUS : D4 |
| 9 | I/O | D7 | BUS : D7 |
| 10 | I/O | D6 | BUS : D6 |
| 11 | P | GND | Ground |
| 12 | P | 3V3D | 3.3 V Power |
| 13 | I/O | A8 | BUS : A8 |
| 14 | I/O | A9 | BUS : A9 |
| 15 | I/O | A10 | BUS : A10 |
| 16 | I/O | A11 | BUS : A11 |
| 17 | I/O | A12 | BUS : A12 |
| 18 | I/O | A13 | BUS : A13 |
| 19 | I/O | A14 | BUS : A14 |
| 20 | I | NC | No connect |
J2
| Pin | Type | Name | Description |
|---|---|---|---|
| 1 | P | 3V3D | 3.3 V Power |
| 2 | I | RSTn | Hardware reset (active low, ≥ 1 µs) |
| 3 | I | SCLK | SPI : Clock input |
| 4 | I | SCSn | SPI : Chip select (active low) |
| 5 | I | WRn | Write Strobe |
| 6 | I | RDn | Read Strobe |
| 7 | I | CSn | W5100 Chip select (active low) |
| 8 | O | INTn | Interrupt output (active low) |
| 9 | P | GND | Ground |
| 10 | P | GND | Ground |
| 11 | I/O | A0 | BUS : A0 |
| 12 | I/O | A1 | BUS : A1 |
| 13 | I/O | A2 | BUS : A2 |
| 14 | I/O | A3 | BUS : A3 |
| 15 | I/O | A4 | BUS : A4 |
| 16 | I/O | A5 | BUS : A5 |
| 17 | I/O | A6 | BUS : A6 |
| 18 | I/O | A7 | BUS : A7 |
| 19 | P | GND | Ground |
| 20 | P | GND | Ground |
Features
- Plug-in network module integrating W5100 chip, transformer, and RJ45 MAG-JACK
- No external design required for transformer or PHY
- Fast evaluation for W5100 and MCU-based systems
- Supports MCU BUS and high-speed SPI interface
- Supports 4 independent hardware sockets
- Operating temperature: −40 °C ~ +85 °C
- Compact plug-in module for rapid development
Electrical Characteristics
- DC Characteristics
- Power Dissipation
| Symbol | Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| VDD | Supply voltage | 2.97 | 3.3 | 3.6 | V |
| VIH | High-level input | 2.0 | – | 5.5 | V |
| VIL | Low-level input | –0.3 | – | 0.8 | V |
| VOH | High-level output | 2.4 | 3.3 | – | V |
| VOL | Low-level output | 0.0 | – | 0.4 | V |
| Condition | Typ | Unit |
|---|---|---|
| 100M Link | TBD | mA |
| 10M Link | TBD | mA |
| Power Down Mode | TBD | mA |
Documentation
| Title | Description | Link |
|---|---|---|
| Datasheet | Technical specifications and interface details for WIZ811MJ |  WIZ811MJ Datasheet v1.1 |

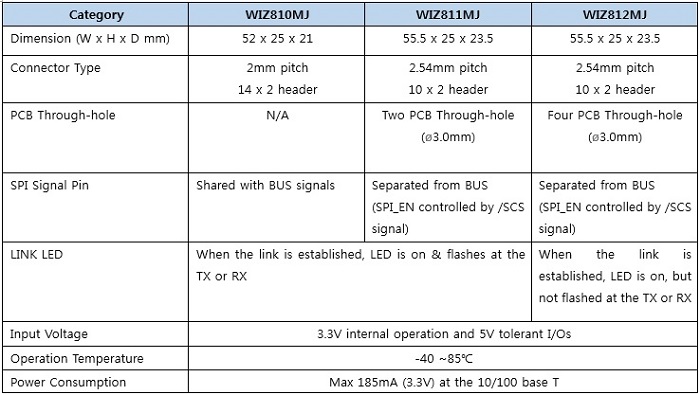

| Comparison Table | Comparison Table with WIZ810MJ, WIZ811MJ, WIZ812MJ | Comparison Table |
Software Resources
- Driver
Driver
| Resource | Description |
|---|---|
 ioLibrary_Driver | Official WIZnet driver library supporting W5100 and related chips |
| AX1.zip | AX1 Loopback Test Program (install version) |
Note: The ioLibrary_Driver provides TCP/IP stack, DHCP, DNS, and other Internet services
for WIZnet’s W5x00 series. Fully compatible with W5100-based modules.
Hardware Resources
| Title | Revision | Description | Download | Notes |
|---|---|---|---|---|
| schematic | 1.2 | Circuit diagram and part list (ZIP package) | ZIP | Includes schematic and part list |

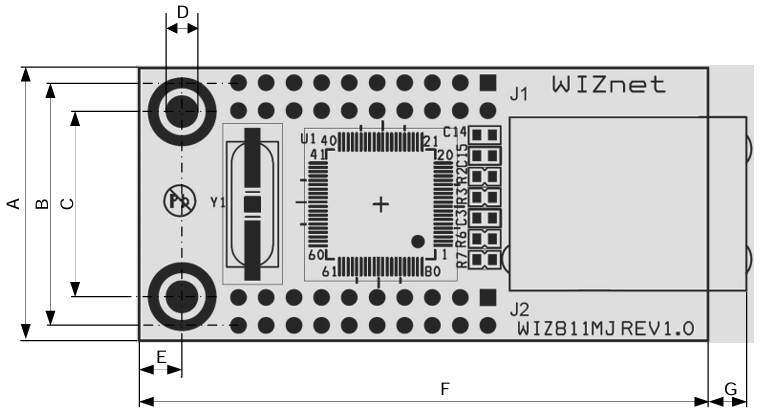

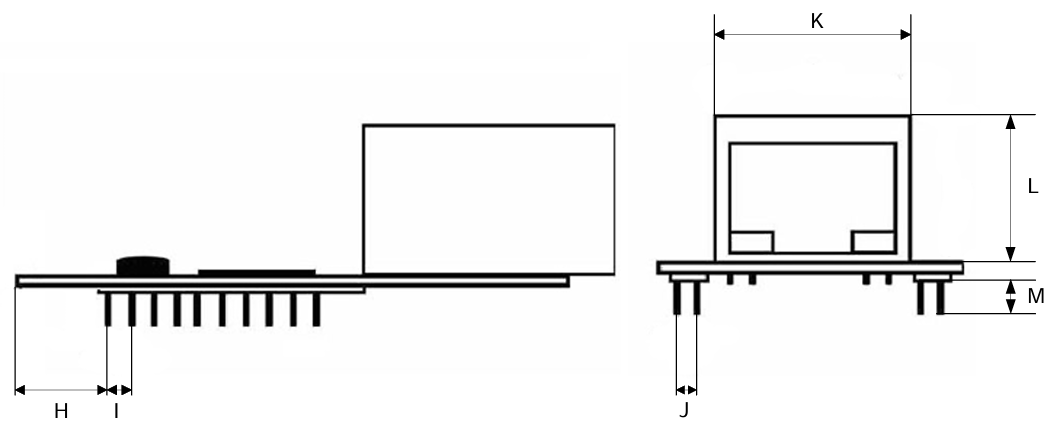

Mechanical Information
| Symbols | Dimensions (mm) |
|---|---|
| A | 25.00 |
| B | 22.46 |
| C | 17.00 |
| D | 3.40 |
| E | 4.00 |
| F | 52.00 |
| G | 3.20 |
| H | 9.00 |
| I | 2.54 |
| J | 2.54 |
| K | 15.90 |
| L | 13.50 |
| M | 6.00 |
- Form factor: Plug-in ioModule
- Pin pitch: 2.54 mm
- Dimensions: Refer to hardware guide
Related Products
| Product | Description |
|---|---|
| W5100 Chip | Hardwired TCP/IP Ethernet controller with PHY |
| WIZ810MJ | Compact Ethernet module with W5100 for fast evaluation |
