WIZ750SR-100
WIZ750SR-100
WIZ750SR-100 is a compact sized serial to Ethernet module using the W7500 Ethernet MCU (SoC based on ARM Cortex-M0 architecture) with External PHY(IC+).
WIZ750SR-100 is a protocol converter that transmits data sent by serial equipment as TCP/IP data, and converts the TCP/IP data received through the network back into serial data to the serial equipment. It complies with industrial temperature standard.
WIZ750SR-100 is compatible[1] with the WIZnet WIZ100SR S2E module. In addition, WIZ750SR-100 contains an 4-pin GPIO expansion port that can be controlled freely by the user. (analog input or digital in/out)
Also, WIZ750SR-100 is compatible to control command with WIZ107SR(WIZ750SR).
WIZ750SR-100 is the best fit solution to control user's serial device via Ethernet network.
Also compatible with WIZ750SR[2] is designed to be used. Users can use various kinds of boards if only changing board selection in firmware. (ex WIZ750SR, WIZ750SR-100, WIZ750SR-105, WIZ750SR-110)
Features
- Serial to Ethernet Module based on W7500 MCU (TTL level)
- Included External PHY chip
- Software and Hardware compatible with WIZ100SR S2E Module
- 10/100Mbps Ethernet & Up to 230kbps serial speed
- 2mm pitch 1x12 Pin-header(2ea) mounted module
- 4-Pins Configurable User's I/O
- Status pins: PHY link status / TCP connection status
- Serial signals(UART or RS-232C)
- WIZ750SR-100 module(UART): TXD, RXD, RTS, CTS
- WIZ750SR-100-EVB(RS-232C): TXD, RXD, RTS, CTS
- Optional DTR/DSR signals supported (Status pins or DTR/DSR pins selectable)
- Separate Data UART and Debug UART port
- Supports a search password
- Configuration is possible via serial AT commands or via Configuration tool
- Support WIZ VSP (Virtual Serial Port) program
- Built in 10/100Mbps Ethernet ESD Protection IC
- Built in Supervisor IC for improvements of Reset function stability
- Compact sized design 50mm X 30mm X 12mm (Length x Width x Height)
Documentation
This section provides key documentation, including user manuals and datasheets, to help you understand product features, specifications, and usage.
| Title | Description | Link | Notes |
|---|---|---|---|
| User's Manual | Product usage instructions |  EN / 한국어 | - |
| Datasheet | Technical specifications | EN | - |
Setup & Configuration
This section provides essential guides and manuals for setting up and configuring your device. Learn how to use various tools and interfaces—including command manuals, configuration utilities, web-based setup, and CLI tutorials—to efficiently manage and customize your product.
| Title | Description | Link | Notes |
|---|---|---|---|
| Command Manual | Guide to main commands and usage | EN / 한국어 | - |
| Configuration Tool Manual | How to use the configuration tool | EN / 한국어 | - |
| Web Server Configuration Guide | Web-based configuration guide | EN / 한국어 | - |
| CLI Config Tool Tutorial | CLI-based configuration tool tutorial | EN | - |
User Guide
This section offers essential guides to help you get started, troubleshoot issues, and make the most of your device. Find setup instructions, developer resources, and support materials below.
| Title | Description | Link | Notes |
|---|---|---|---|
| Getting Started | Quick setup instructions for using your WIZ750SR device | EN / 한국어 | - |
| Trouble Shooting Guide | Solutions to common issues and troubleshooting steps | EN / 한국어 | - |
| Developer's Guide | Setup, customization, and advanced usage for developers | EN / 한국어 | - |
Software Resources
This section provides essential software resources, including configuration tools, firmware, and source code for your device.
- Tools
- Firmware
- Source code
| Title | Description | Download | Notes |
|---|---|---|---|
| WIZnet S2E Configuration Tool | WIZnet device search, configuration, and firmware upload tool | Download | - |
| ISP tool | Firmware upload for W7500x series | Download | - |
| WIZVSP | Virtual COM port software for serial-based applications | Download | Note |
The configuration tool used is different depending on the S2E product family, so need to use a tool suitable for the product.
| Title | Description | Download | Notes |
|---|---|---|---|
| firmware | Application Firmware |  Application v1.4.2 | For ConfigTool only |
| ::: | All (Boot + App) | All v1.4.2 | For WIZISP only |
WIZnet S2E config-tool supports firmware update function of application area only. (App only) If you want to program the 'Boot+App' firmware on your device, please use the W7500(P) ISP tool.
WIZ750SR Series Firmware source code link
WIZ750SR Series GitHub Repository
Note: The above link is an integrated firmware project(MDK-ARM)'s repository of WIZ750SR and WIZ750SR-100 series.
Hardware Resources
This section provides essential hardware resources, including schematics, 3D models, and part lists for your reference.
| Title | Description | Download | Notes |
|---|---|---|---|
| schematic | Circuit diagram for hardware design reference | Altium / PDF | Latest version H/W |
| 3D File | 3D model for mechanical design and visualization | step | ::: |
| Part list | List of components used in the hardware | Excel / PDF | ::: |
Old versions of the hardware resources can be found at this link.
Test & Certification
This section provides official test results and certification documents for product compliance and safety standards.
| Title | Description | Download | Notes |
|---|---|---|---|
| KC | Korea safety certification | - | TBD |
| FCC | U.S. EMI certification | - | TBD |
| CE | EU safety certification | - | TBD |
Evaluation Boards & Related modules

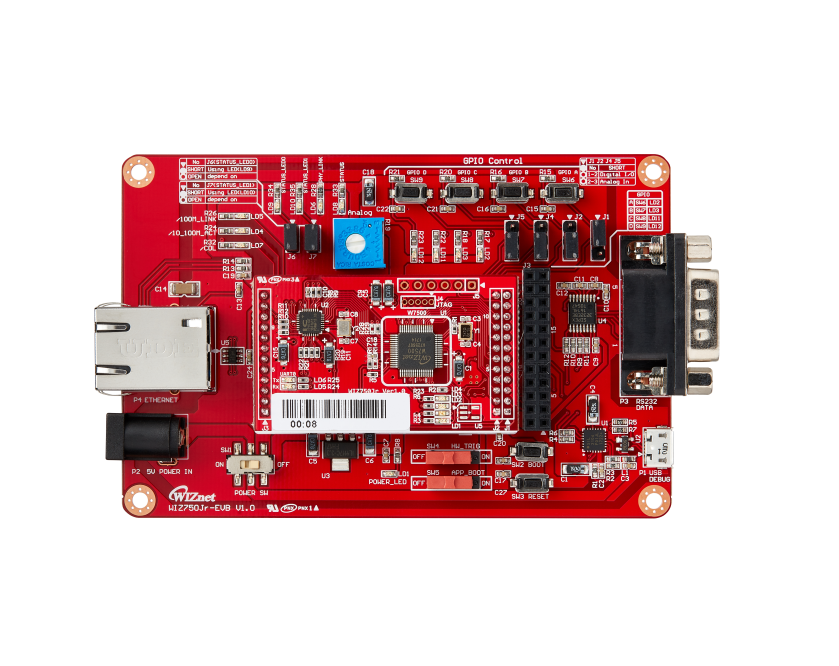

- Evaluation Boards
- Related modules
