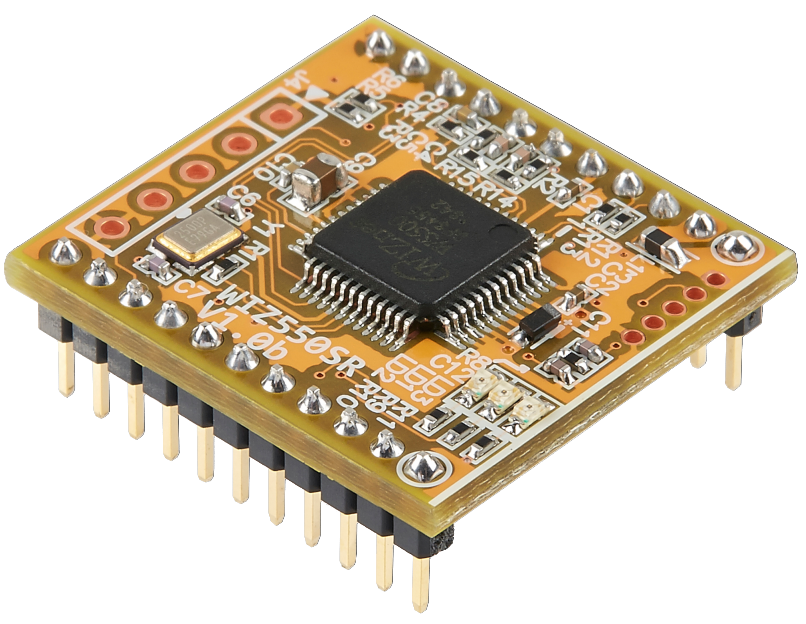

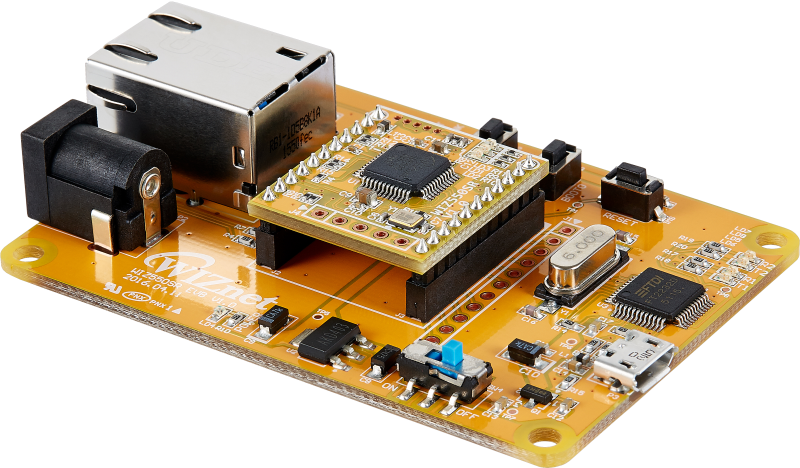

WIZ550SR is Serial to Ethernet module, It's mounted TCP/IP chip W5500 of WIZnet and Cortex-M3-based STM32F103RCT6 of STmicro.
WIZ550SR does not contain RJ45 because very small size type. WIZ550SR provides the user Interface 2.00mm Pitch Pin header.

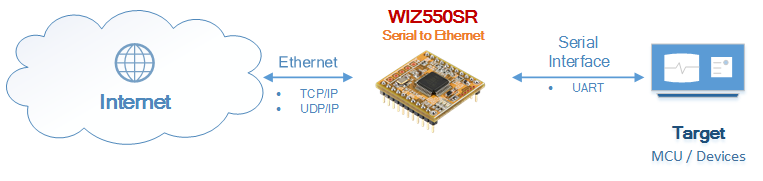

WIZ550SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to a serial equipment. It complies with industrial temperature standard and supports the serial interfaces of UART.
WIZ550SR is is compatible with the Configuration Tool of WIZ550S2E and WIZ550WEB, and will use the same AT Command.
However, Configuration Tool must use the latest version.
Features
- Very small size Serial to Ethernet Module. 22mm x 24mm x 13mm.
- WIZnet, TCP/IP Chip W5500.
- STmicro, Cortex-M3 based STM32F103RCT6.
- Not include a transformer and RJ45.
- 2.00mm Pitch Pin Header Type, 1x11.
- Support the MDI(Medium Dependent Interface).
- TXN, TXP, RXN, RXP
- Support the UART Interface.
- RXD, TXD, RTS, CTS, DSR(Option), DTR(Option)
- Buad Rate : 600bps to 230.4kbps
- Length : 8bit
- Parity bit : None, Odd, Even
- Stop bit : 1bit, 2bit
- Support the RS-232C Interface.
- Will be supported the RS-422/485 Interface.
- Default : 115200, 8, n, 1
- Support the Debug UART.
- DEBUG RXD, DEBUG TXD
- Default : 115200, 8, n, 1
- Support the PHY Status Output.
- Active LED, Link LED
- Support the STATUS Output.
- LOW : TCP Connect.
- HIGH : TCP Diconnect.
- System Pin.
- RESET : System Reset, Active Low.
- BOOT0 : MCU BOOT mode operation, Active High.
- H/W TRIG : App BOOT mode operation, Active Low.
- Support the Indicator LED.
- Power LED(LD3).
- LED 0(LD1) :
- LED 1(LD2) :
- Support the Pin Header Hole for firmware upload.
- 2.54mm Pitch, Not Mount.
- Support the Pin Header Hole for SWD.
- 1.27mm Pitch, Not Mount.
- Include eeprom for data storage.
- Support the AT Command for the set of WIZ550SR.
- Support the WIZ VSP (Virtual Serial Port).
- Operation Temperature : -40℃ ~ 85℃
- Size : 22mm x 24mm x 13mm 30mm X 18mm (Length x Width x Height)
Documentation
This section provides key documentation, including user manuals and datasheets, to help you understand product features, specifications, and usage.
| Title | Description | Link | Notes |
|---|---|---|---|
| User's Manual | Product usage instructions | - | TBD |
| Datasheet | Technical specifications |  EN / 한국어 | - |
Setup & Configuration
This section provides essential guides and manuals for setting up and configuring your device. Learn how to use various tools and interfaces—including command manuals, configuration utilities, web-based setup, and CLI tutorials—to efficiently manage and customize your product.
| Title | Description | Link | Notes |
|---|---|---|---|
| Command Manual | Guide to main commands and usage | EN / 한국어 | - |
| Configuration Tool Manual | How to use the configuration tool | - | TBD |
| Web Server Configuration Guide | Web-based configuration guide | - | TBD |
User Guide
This section offers essential guides to help you get started, troubleshoot issues, and make the most of your device. Find setup instructions, developer resources, and support materials below.
| Title | Description | Link | Notes |
|---|---|---|---|
| Getting Started | Quick setup instructions for using your WIZ750SR device | EN / 한국어 | - |
| Trouble Shooting Guide | Solutions to common issues and troubleshooting steps | - | TBD |
| Developer's Guide | Setup, customization, and advanced usage for developers | - | TBD |
Software Resources
This section provides essential software resources, including configuration tools, firmware, and source code for your device.
- Tools
- Firmware
- Source code
| Title | Description | Download | Notes |
|---|---|---|---|
| WIZnet Configuration Tool | WIZnet device search, configuration, and firmware upload tool |  Download | - |
| WIZVSP | Virtual COM port software for serial-based applications | Download | Note |
The configuration tool used is different depending on the S2E product family, so need to use a tool suitable for the product.
| Title | Description | Download | Notes |
|---|---|---|---|
| firmware | Application Firmware | Application v1.2.2 | For ConfigTool only |
| ::: | All (Boot + App) | All v1.2.2 | For Flash Loader Demonstrator only |
WIZnet S2E config-tool supports firmware update function of application area only. (App only) If you want to program the 'Boot+App' firmware on your device, please use the W7500(P) ISP tool.
WIZ550SR Firmware source code link
Hardware Resources
This section provides essential hardware resources, including schematics, 3D models, and part lists for your reference.
| Title | Description | Download | Notes |
|---|---|---|---|
| schematic | Circuit diagram for hardware design reference | Altium / PDF | Latest version H/W |
| 3D File | 3D model for mechanical design and visualization | Altium | ::: |
| Part list | List of components used in the hardware | PDF | ::: |
Old versions of the hardware resources can be found at this link.
