WIZ105SR is not discontinued, but we do not recommend it for new designs.
Technical support for this product has officially ended.
Please check WIZ750SR-105 instead.
WIZ105SR
WIZ105SR

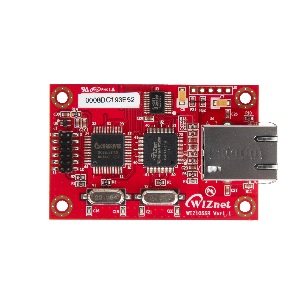

WIZ105SR is the serial to Ethernet module using W5100 & 8051 MCU.
WIZ105SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment.
Features
- Serial to Ethernet Module based on W5100 & 8051
- Pin-header type, RJ-45 mounted module
- Serial signals : TXD, RXD, RTS, CTS, GND
- Support the configuration method of AT command & Configuration tool program
- 10/100Mbps Ethernet & Max.230kbps serial speed
- Support WIZ VSP (Virtual Serial Port) program
Documentation
This section provides key documentation, including user manuals and datasheets, to help you understand product features, specifications, and usage.
| Title | Description | Link | Notes |
|---|---|---|---|
| User's Manual | Product usage instructions |  EN | - |
| Datasheet | Technical specifications | - | TBD |
Setup & Configuration
This section provides essential guides and manuals for setting up and configuring your device. Learn how to use various tools and interfaces—including command manuals, configuration utilities, web-based setup, and CLI tutorials—to efficiently manage and customize your product.
| Title | Description | Link | Notes |
|---|---|---|---|
| Command Manual | Guide to main commands and usage | - | TBD |
| Configuration Tool Manual | How to use the configuration tool | - | TBD |
| Web Server Configuration Guide | Web-based configuration guide | - | TBD |
| CLI Config Tool Tutorial | CLI-based configuration tool tutorial | - | TBD |
| Configuration Tool Programming Guide | How to make the Configuration Tool | Download | - |
User Guide
This section offers essential guides to help you get started, troubleshoot issues, and make the most of your device. Find setup instructions, developer resources, and support materials below.
| Title | Description | Link | Notes |
|---|---|---|---|
| Getting Started | Quick setup instructions for using your WIZ750SR device | - | TBD |
| Trouble Shooting Guide | Solutions to common issues and troubleshooting steps | - | TBD |
| Developer's Guide | Setup, customization, and advanced usage for developers | - | TBD |
Software Resources
This section provides essential software resources, including configuration tools, firmware, and source code for your device.
- Tools
- Firmware
| Title | Description | Download | Notes |
|---|---|---|---|
| WIZnet Configuration Tool | WIZnet device search, configuration, and firmware upload tool |  Download | WIZ100SR/105SR/110SR only |
| Terminal Program | Device Terminal Program for Windows | Download | - |
| WIZVSP | Virtual COM port software for serial-based applications |  Download | - |
The configuration tool used is different depending on the S2E product family, so need to use a tool suitable for the product.
| Title | Description | Download | Notes |
|---|---|---|---|
| firmware | WIZ105SR Firmware | v5.13 | - |
| ::: | WIZ105SR Old Firmware | Old version | - |
- V5.11 (2015.01.21)
- 5.10 (2014.01.14)
- 4.32 (2013.11.21)
- 4.31 (2013.01.30)
- 4.1 (2012-04-03)
Hardware Resources
This section provides essential hardware resources, including schematics, 3D models, and part lists for your reference.
| Title | Description | Download | Notes |
|---|---|---|---|
| schematic | Circuit diagram for hardware design reference | - | TBD |
| 3D File | 3D model for mechanical design and visualization | - | TBD |
| Part list | List of components used in the hardware | - | TBD |
Test & Certification
This section provides official test results and certification documents for product compliance and safety standards.
| Title | Description | Download | Notes |
|---|---|---|---|
| KC | Korea safety certification | - | TBD |
| FCC | U.S. EMI certification | - | TBD |
| CE | EU safety certification | - | TBD |
