WIZ752SR-120
WIZ752SR-120

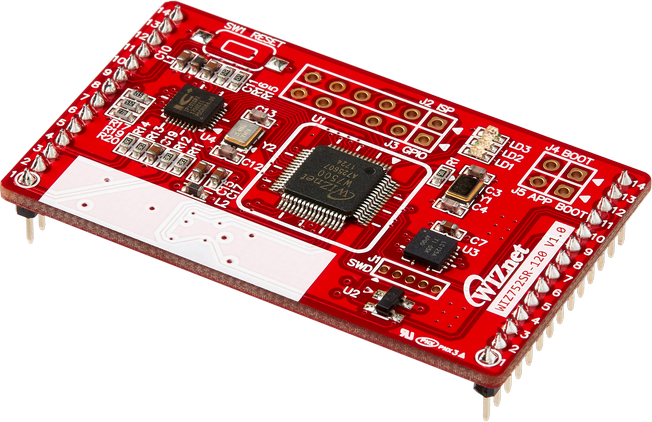

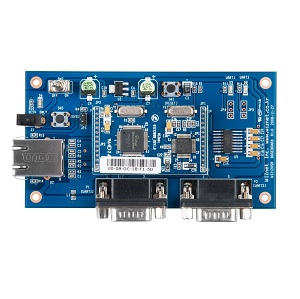

WIZ752SR-120 is a compact sized serial to Ethernet module using the W7500 Ethernet MCU (SoC based on ARM Cortex-M0 architecture) with External PHY(IC+).
WIZ752SR-120 is a protocol converter that transmits data sent by serial equipment as TCP/IP data and converts the TCP/IP data received through the network back into serial data to the serial equipment. It complies with industrial temperature standard.
WIZ752SR-120 is compatible with the WIZnet WIZ120SR S2E module. In addition, WIZ752SR-120 contains a 4-pin GPIO expansion port that can be controlled freely by the user. (analog input or digital in/out)
WIZ752SR-120 is the best fit solution to control user's serial device via Ethernet network.
Features
- Serial to Ethernet Module based on W7500 MCU
- Included External PHY chip
- Function and Hardware compatible with WIZ120SR S2E Module
- It's not compatible configuration tool of WIZ120SR
- Supports 2-Port Serial(UART)
- 10/100Mbps Ethernet & Up to 230kbps serial speed
- 2.00mm Pitch 1x14 Pin-Header 2EA
- Ethernet Signal, UART0/1 Signal, System Signal
- Status pins: TCP connection status
- Supports a search password
- Configuration is possible via serial AT commands or via Configuration tool
- Support WIZ VSP (Virtual Serial Port) program
- Built-in Supervisor IC for improvements of Reset function stability
- Supports Static IP, DHCP, PPPoE
- Supports DNS
- Operation Temperature : -40℃ ~ 85℃
- Dimensions : 50.00(W) x 30.00(L) x 9.00(H) (Unit : mm)
Documentation
This section provides key documentation, including user manuals and datasheets, to help you understand product features, specifications, and usage.
| Title | Description | Link | Notes |
|---|---|---|---|
| User's Manual | Product usage instructions |  EN / 한국어 | - |
| Datasheet | Technical specifications | EN | - |
Setup & Configuration
This section provides essential guides and manuals for setting up and configuring your device. Learn how to use various tools and interfaces—including command manuals, configuration utilities, web-based setup, and CLI tutorials—to efficiently manage and customize your product.
| Title | Description | Link | Notes |
|---|---|---|---|
| Command Manual | Guide to main commands and usage | EN / 한국어 | - |
| Configuration Tool Manual | How to use the configuration tool | EN / 한국어 | - |
| CLI Config Tool Tutorial | CLI-based configuration tool tutorial | EN | - |
User Guide
This section offers essential guides to help you get started, troubleshoot issues, and make the most of your device. Find setup instructions, developer resources, and support materials below.
| Title | Description | Link | Notes |
|---|---|---|---|
| Getting Started | Quick setup instructions for using your WIZ750SR device | EN / 한국어 | - |
| Trouble Shooting Guide | Solutions to common issues and troubleshooting steps | EN / 한국어 | - |
| Developer's Guide | Setup, customization, and advanced usage for developers | EN / 한국어 | - |
Software Resources
This section provides essential software resources, including configuration tools, firmware, and source code for your device.
- Tools
- Firmware
- Source code
| Title | Description | Download | Notes |
|---|---|---|---|
| WIZnet S2E Configuration Tool | WIZnet device search, configuration, and firmware upload tool | Download | - |
| ISP tool | Firmware upload for W7500x series | Download | - |
| WIZVSP | Virtual COM port software for serial-based applications | Download | Note |
The configuration tool used is different depending on the S2E product family, so need to use a tool suitable for the product.
| Title | Description | Download | Notes |
|---|---|---|---|
| firmware | Application Firmware |  Application v2.1.0 | For ConfigTool only |
| ::: | All (Boot + App) | All v2.1.0 | For WIZISP only |
WIZnet S2E config-tool supports firmware update function of application area only. (App only) If you want to program the 'Boot+App' firmware on your device, please use the W7500(P) ISP tool.
WIZ752SR Series Firmware source code link
Hardware Resources
This section provides essential hardware resources, including schematics, 3D models, and part lists for your reference.
| Title | Description | Download | Notes |
|---|---|---|---|
| schematic | Circuit diagram for hardware design reference | ZIP / PDF | Latest version H/W |
| 3D File | 3D model for mechanical design and visualization | Altium | ::: |
| Part list | List of components used in the hardware | Excel / PDF | ::: |
Old versions of the hardware resources can be found at this link.
Test & Certification
This section provides official test results and certification documents for product compliance and safety standards.
| Title | Description | Download | Notes |
|---|---|---|---|
| KC | Korea safety certification | - | TBD |
| FCC | U.S. EMI certification | - | TBD |
| CE | EU safety certification | - | TBD |
