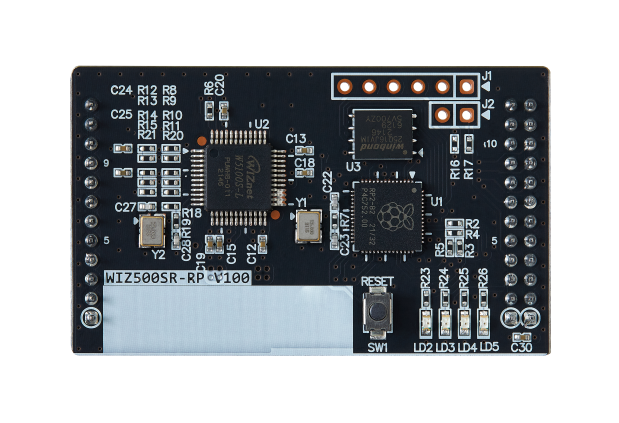

WIZ500SR-RP

WIZ500SR-RP
WIZ500SR-RP is a compact sized serial to Ethernet module using the RP2040 MCU with W5100S Ethernet Chip.
WIZ500SR-RP is a protocol converter that transmits data sent by serial equipment as TCP/IP data, and converts the TCP/IP data received through the network back into serial data to the serial equipment.
In addition, WIZ500SR-RP contains serial debug port(J1).
WIZ500SR-RP is the best fit solution to control user's serial device via Ethernet network.
Features
- Serial to Ethernet Module based on RP2040 MCU (TTL level)
- W5100S included
- 10/100Mbps Ethernet & Up to 230kbps serial speed
- 2mm pitch 1x12 Pin-header(3ea) mounted module
- Status pins: PHY link status / TCP connection status
- Serial signals(UART or RS-232C)
- WIZ500SR-RP module(UART): TXD, RXD, RTS, CTS
- WIZ5xxSR-RP-EVB(RS-232C): TXD, RXD, RTS, CTS
- Optional DTR/DSR signals supported
- WIZ500SR-RP has UART x 2, SWD x 1, Ethernet x 1
- UART0, SWD for Debug and UART1, Ethernet for Data transceive
- Separate Data UART and Debug UART port
- Configuration is possible via serial AT commands or via Configuration tool
- Support WIZ VSP (Virtual Serial Port) program
Documentation
This section provides key documentation, including user manuals and datasheets, to help you understand product features, specifications, and usage.
Title | Description | Link | Notes |
---|---|---|---|
User's Manual | Product usage instructions | - | TBD |
Datasheet | Technical specifications | - |
Setup & Configuration
This section provides essential guides and manuals for setting up and configuring your device. Learn how to use various tools and interfaces—including command manuals, configuration utilities, web-based setup, and CLI tutorials—to efficiently manage and customize your product.
Title | Description | Link | Notes |
---|---|---|---|
Command Manual | Guide to main commands and usage | - | |
Configuration Tool Manual | How to use the configuration tool | - | |
Web Server Configuration Guide | Web-based configuration guide | - | TBD |
User Guide
This section offers essential guides to help you get started, troubleshoot issues, and make the most of your device. Find setup instructions, developer resources, and support materials below.
Title | Description | Link | Notes |
---|---|---|---|
Getting Started | Quick setup instructions for using your WIZ500SR-RP device | - | |
Trouble Shooting Guide | Solutions to common issues and troubleshooting steps | - | TBD |
Developer's Guide | Setup, customization, and advanced usage for developers | - | TBD |
MQTT Connection Guide | How to set up and use MQTT communication | - | |
SSL Connection Guide | How to configure secure SSL connections | - | |
Modbus Connection Guide | How to connect and use Modbus protocol | - |
Software Resources
This section provides essential software resources, including configuration tools, firmware, and source code for your device.
- Tools
- Firmware
- Source code
Title | Description | Download | Notes |
---|---|---|---|
WIZnet S2E Configuration Tool | WIZnet device search, configuration, and firmware upload tool | - | |
WIZVSP | Virtual COM port software for serial-based applications |
The configuration tool used is different depending on the S2E product family, so need to use a tool suitable for the product.
Title | Description | Download | Notes |
---|---|---|---|
firmware | Firmware | - |
WIZ500SR-RP Series Firmware source code link
Hardware Resources
This section provides essential hardware resources, including schematics, 3D models, and part lists for your reference.
Title | Description | Download | Notes |
---|---|---|---|
schematic | Circuit diagram for hardware design reference | Latest version H/W | |
3D File | 3D model for mechanical design and visualization | ::: | |
Part list | List of components used in the hardware | ::: |
Old versions of the hardware resources can be found at this link.
Test & Certification
This section provides official test results and certification documents for product compliance and safety standards.
Title | Description | Download | Notes |
---|---|---|---|
KC | Korea safety certification | - | |
FCC | U.S. EMI certification | - | |
CE | EU safety certification | - |
Evaluation Boards & Related modules
- Evaluation Boards
- Related modules

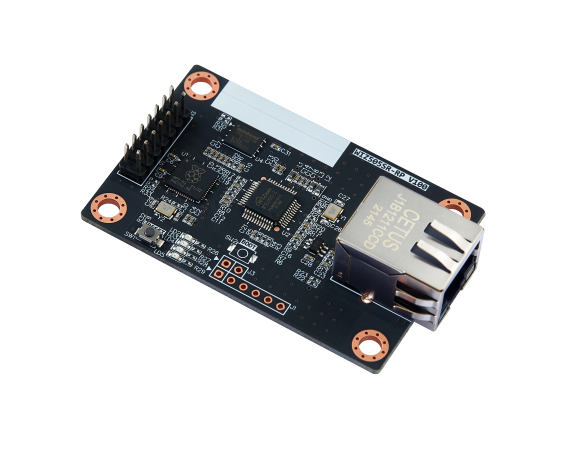

- The WIZ500SR-RP EVB SET is a combination of WIZ500SR-RP-EVB and WIZ505SR-RP-EVB.
