W7500S2E-R1

W7500S2E-R1

W7500S2E-R1

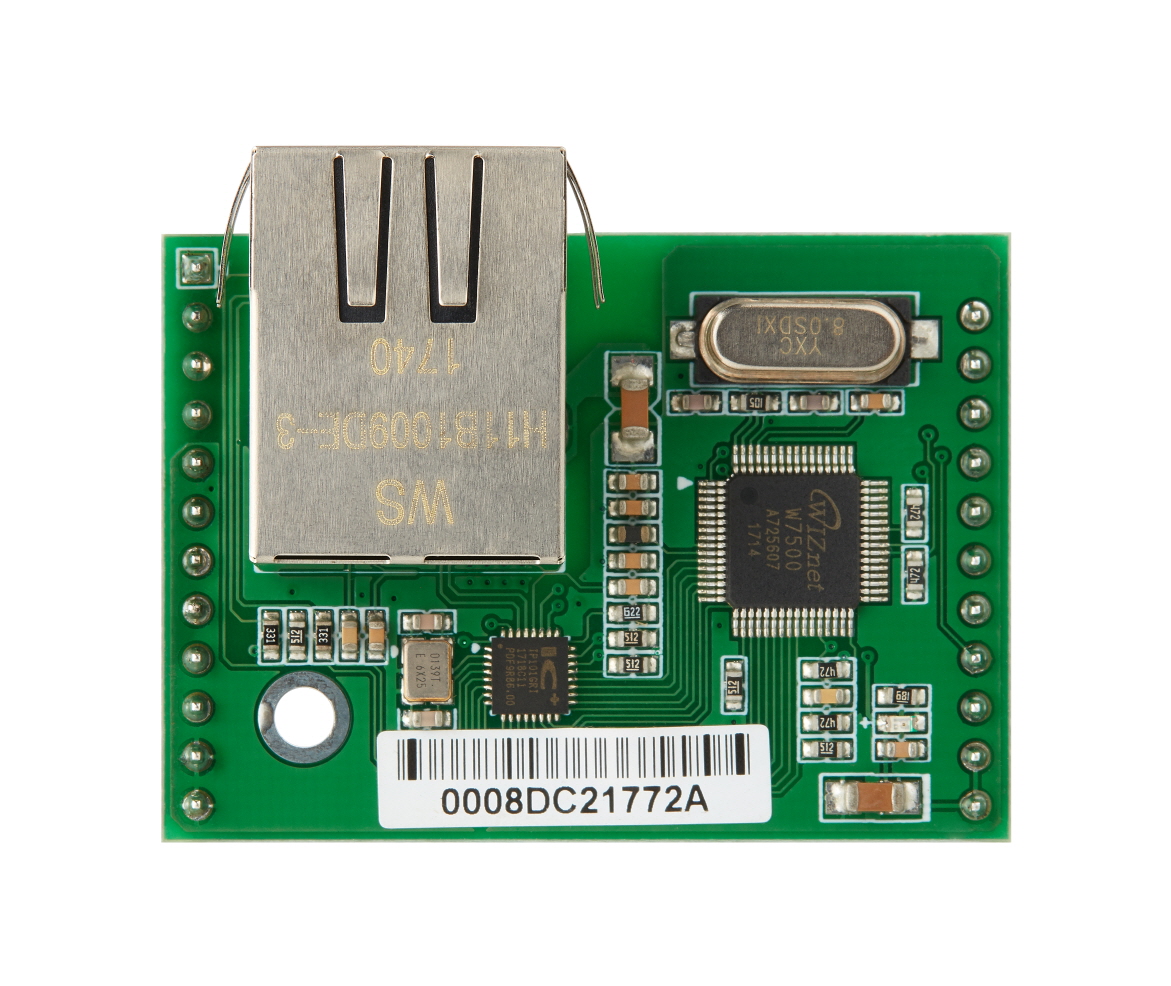

W7500S2E-R1 is low price Serial to Ethernet Module based on W7500 from WIZnet.

W7500S2E is a series of industrial grade serial to Ethernet module. It supports TCP server, TCP client and UDP modes. The maximum baud rate of the serial port is 460,800bps. W7500S2E supports WIZS2E ConfigTool (Configuration Tool for Windows®), web page and AT command for configuring.

W7500S2E integrated with the hardwired TCP/IP protocol MCU W7500/W7500P. This enables a faster, stable and secure Ethernet connectivity. With reference schematic(s) and guideline(s) in this user manual, user can simplify the design and reduce development time.

Features​

  • Baud Rate can be configured to any standard value from 300 bps to 460,800 bps
  • 10/100 Mbps Auto-Negotiation Ethernet interface
  • Support TCP server, TCP client and UDP operating modes
  • Flexible serial interface data packaging condition settings
  • Smart Ethernet cable detection and keep alive features
  • As DHCP client to automatically acquire IP address
  • As DNS client to lookup domain name
  • Support NetBIOS allows user to identify module’s name
  • Support user password authorization for security
  • Support serial AT command configuration method
  • Built-in web server for browser and remote configuring
  • Provide user-friendly configuration tool program (WIZS2E ConfigTool)

Documentation​

This section provides key documentation, including user manuals and datasheets, to help you understand product features, specifications, and usage.

TitleDescriptionLinkNotes
User's ManualProduct usage instructionslink EN-
DatasheetTechnical specifications-TBD

Setup & Configuration​

This section provides essential guides and manuals for setting up and configuring your device. Learn how to use various tools and interfaces—including command manuals, configuration utilities, web-based setup, and CLI tutorials—to efficiently manage and customize your product.

TitleDescriptionLinkNotes
Command ManualGuide to main commands and usage-TBD
Configuration Tool ManualHow to use the configuration tool-TBD
Web Server Configuration GuideWeb-based configuration guide-TBD
CLI Config Tool TutorialCLI-based configuration tool tutorial-TBD

User Guide​

This section offers essential guides to help you get started, troubleshoot issues, and make the most of your device. Find setup instructions, developer resources, and support materials below.

TitleDescriptionLinkNotes
Getting StartedQuick setup instructions for using your WIZ750SR device-TBD
Trouble Shooting GuideSolutions to common issues and troubleshooting steps-TBD
Developer's GuideSetup, customization, and advanced usage for developers-TBD

Software Resources​

This section provides essential software resources, including configuration tools, firmware, and source code for your device.

TitleDescriptionDownloadNotes
WIZnet S2E Configuration ToolWIZnet device search, configuration, and firmware upload tooldownload Setup-
::::::download .exe only-
info

The configuration tool used is different depending on the S2E product family, so need to use a tool suitable for the product.

Hardware Resources​

This section provides essential hardware resources, including schematics, 3D models, and part lists for your reference.

TitleDescriptionDownloadNotes
schematicCircuit diagram for hardware design referencedownload [Altium] / download [PDF]Latest version H/W
3D File3D model for mechanical design and visualizationdownload [Altium]:::
Part listList of components used in the hardwaredownload [ZIP]:::

Test & Certification​

This section provides official test results and certification documents for product compliance and safety standards.

TitleDescriptionDownloadNotes
KCKorea safety certification [Download]-
FCCU.S. EMI certification [Download]-
CEEU safety certification [Download]-
