Overview

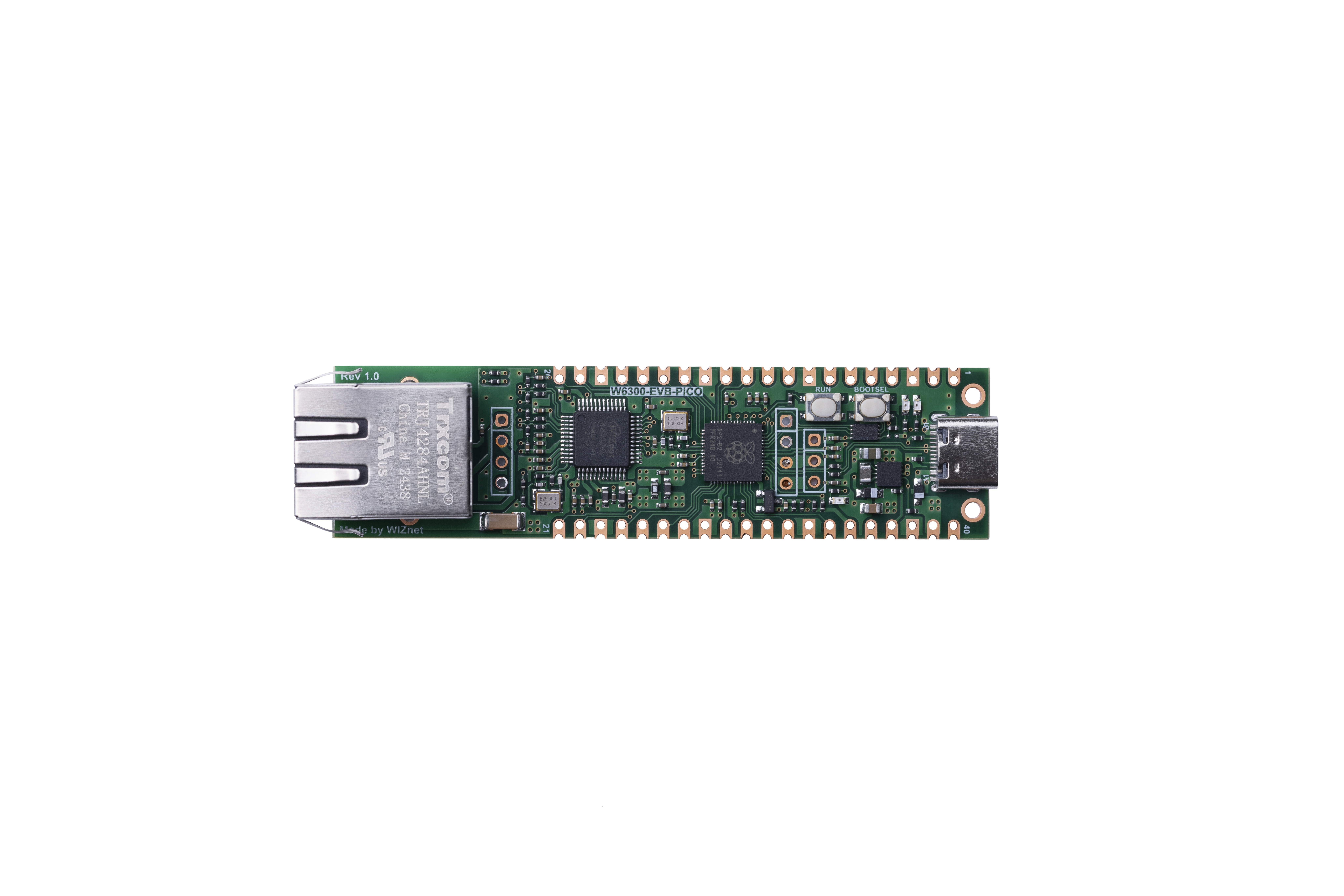

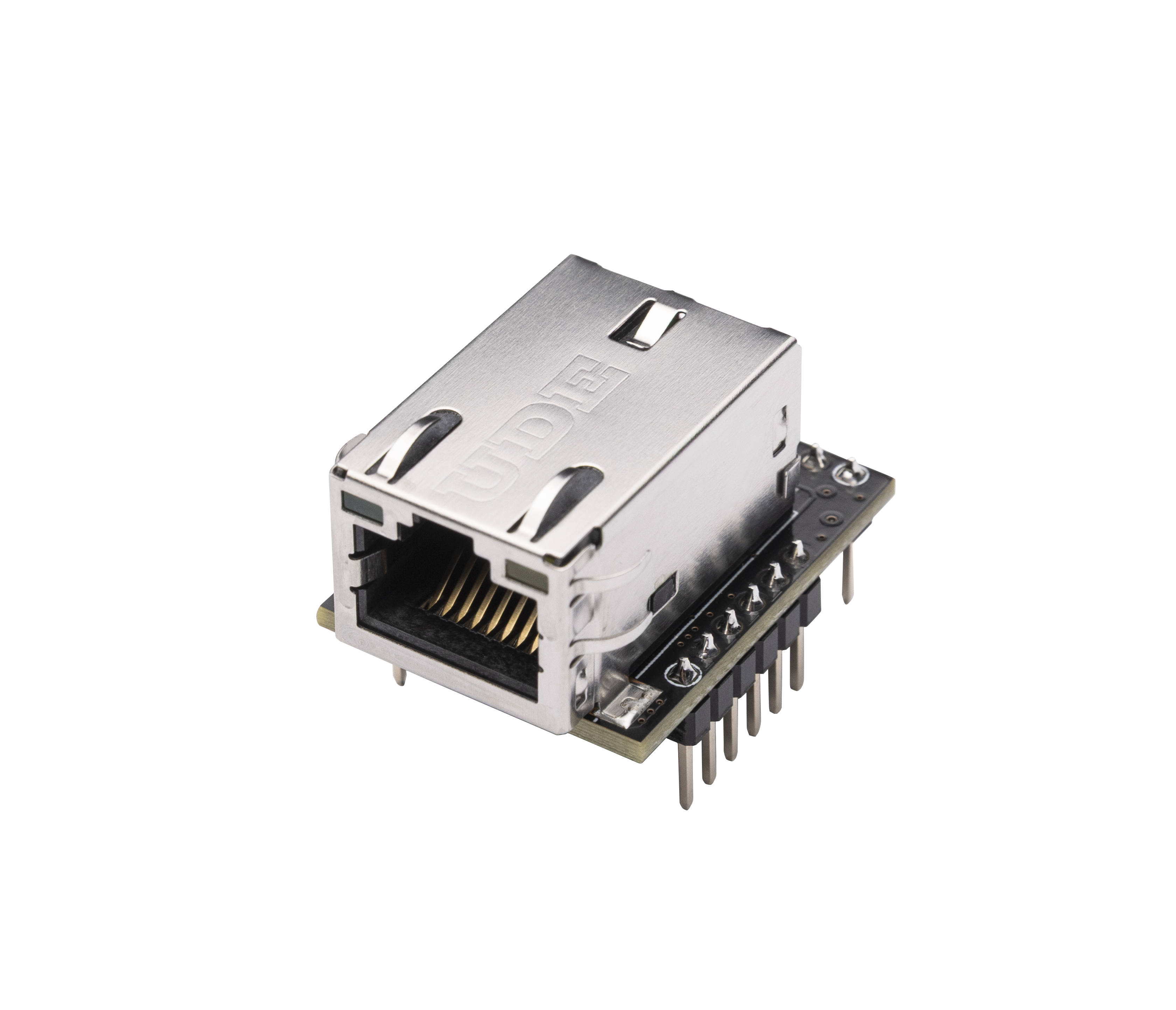

W6300​

W6300 is a WIZnet 10/100 TOE ethernet chip that combines the high-speed ethernet performance with Dual IPv4/v6 Hardware stack. To support ethernet performance over 80Mbps and above, it supports 150MHz system clock and QSPI interface(including 4 Data lines). W6300 supports a total SRAM size of 64KB for 8 sockets, each has 4KB TX/RX buffer by default.

Pin MAP​

Features​

  • Support Hardwired TCP/IP Protocols : TCP, UDP, IPv6, IPv4, ICMPv6, ICMPv4, IGMP, MLDv1, ARP, PPPoE
  • Support IPv4/IPv6 Dual Stack
  • Support 8 independent SOCKETs simultaneously with 64KB Memory
  • Support SOCKET-less Command: ARP, PING, ICMPv6(PING, ARP,DAD,NA,RS) Command for IPv6 Auto-configuration& Network Monitoring
  • Support Ethernet Power Down Mode & System Clock Switching for power save
  • Support Wake on LAN over UDP
  • Support Serial & Parallel Host Interface: High Speed QSPI(MODE 0/3), System Bus with 2 Address signal & 8bit Data
  • Internal 32Kbytes Memory for TX/ RX Buffers(total 64Kbytes Memory)
  • 10BaseT / 10BaseTe / 100BaseTX Ethernet PHY Integrated
  • Support Auto Negotiation (Full and half duplex, 10 and 100-based )
  • Support Auto-MDIX only on Auto-Negotiation Mode
  • Not support IP Fragmentation
  • 3V operation with 5V I/O signal tolerance
  • Network Indicator LEDs (Full/Half Duplex, Link, 10/100 Speed, Active)
  • 48 Pin LQFP & QFN Lead-Free Package

target application

  • Home Network Devices: Set-Top Boxes, PVRs, Digital Media Adapters
  • Serial-to-Ethernet: Access Controls, LED displays, Wireless AP relays, etc.
  • Parallel-to-Ethernet: POS / Mini Printers, Copiers
  • USB-to-Ethernet: Storage Devices, Network Printers
  • GPIO-to-Ethernet: Home Network Sensors
  • Security Systems: DVRs, Network Cameras, Kiosks
  • Factory, Building, Home Automations
  • Medical Monitoring Equipment
  • Embedded Servers
  • Internet of Things (IoT) Devices
  • IoT Cloud Devices

iperf 3 Test Results​

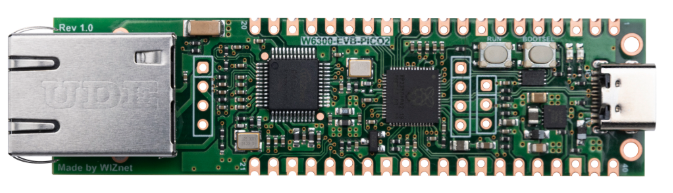

with RP2350​

This test measured network speed using RP2350 and W6300 with iperf 3. The goal was to compare performance across different modes (SINGLE, DUAL, QUAD) and clock speeds.

Test Method​

  • Clock Speed: 5MHz ~ 43MHz
  • Communication Modes: QSPI SINGLE/DUAL/QUAD
  • Measurement Tool: iperf 3

Key Results​

  • SINGLE Mode: Up to 36.32 Mbits/sec
  • DUAL Mode: Up to 62.53 Mbits/sec
  • QUAD Mode: Up to 91.2 Mbits/sec

The highest speed was achieved in QUAD mode at 43MHz, reaching 91.2 Mbits/sec.

[LWIP] iperf 3 Test Results​

with RP2350​

This test measured network speed using RP2350 and W6300 with iperf 3. The goal was to compare performance of software-based lwIP across different modes (SINGLE, DUAL, QUAD) and clock speeds.

Test Method​

  • TCP/IP Stack: lwip(software)
  • Clock Speed: 5MHz ~ 43MHz
  • Communication Modes: QSPI SINGLE/DUAL/QUAD
  • Measurement Tool: iperf 3

Key Results​

  • SINGLE Mode: Up to 18.1 Mbits/sec
  • DUAL Mode: Up to 22.5 Mbits/sec
  • QUAD Mode: Up to 24.4 Mbits/sec

The highest speed was achieved in QUAD mode at 43MHz, reaching 24.4 Mbits/sec.
