W5300
W5300 is a hardwired TCP/IP stack internet controller chip with WIZnet technology, integrating 10/100 Ethernet MAC and PHY in a single package. It supports multiple protocols such as TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE, proven stable through real-world applications. W5300 provides 8 independent hardware SOCKETs and 128KB of internal buffer memory, allowing Ethernet applications to be developed through socket programming. It also offers direct and indirect BUS interfaces for easy MCU integration.

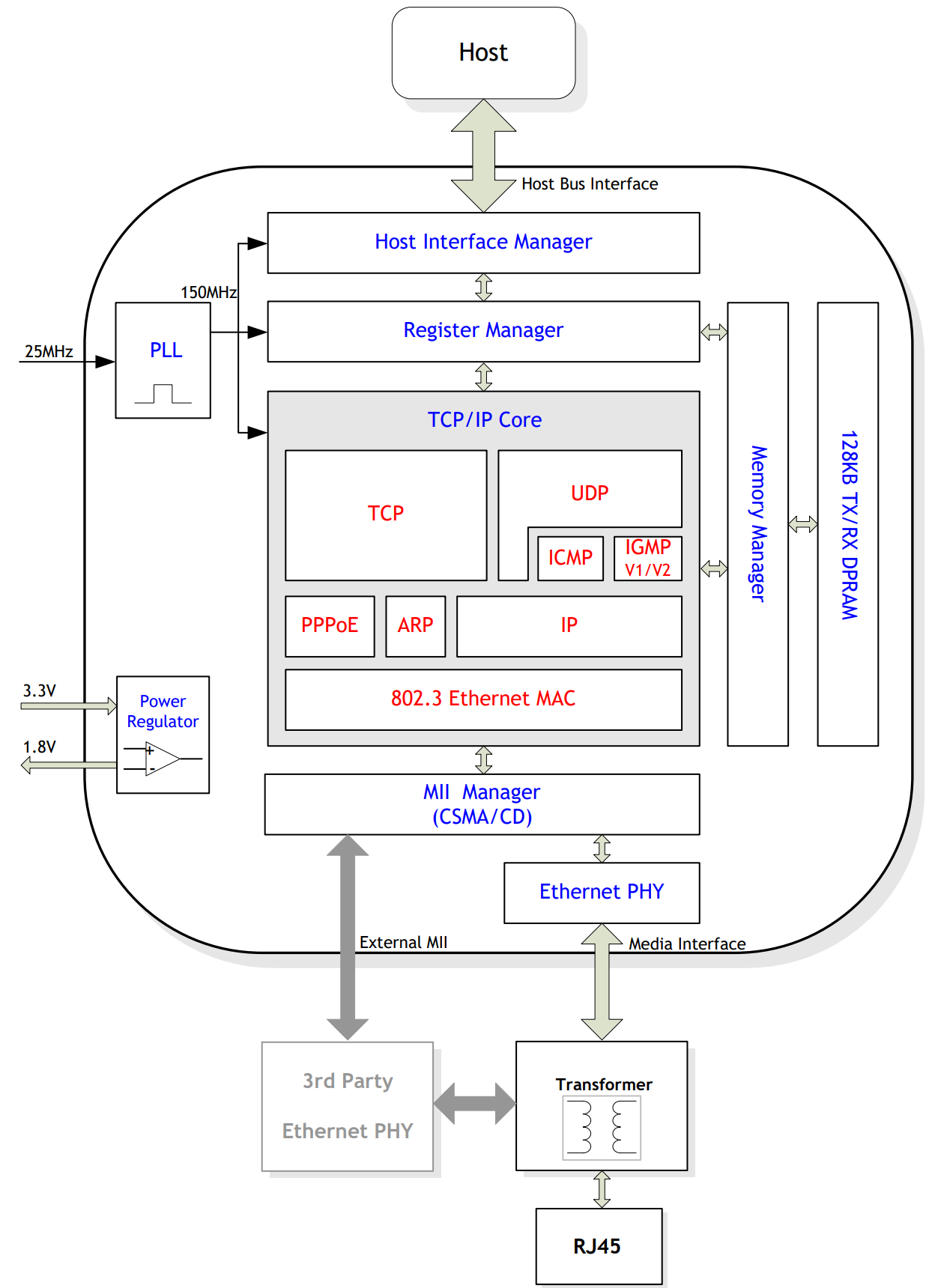

Block Diagram
Pin Map
Features
- Hardwired TCP/IP protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- Un-attackable hardware network engine for preventing network attacks such as flooding, spoofing, injection
- Host Interface : 8/16 bit Data Bus (Direct & Indirect Address Mode)
- High Network Performance : Max 80Mbps (by DMA)
- Support embedded OS driver : Linux (kernel 2.6.24)
- 8 Independent hardware socket
- Internal 128Kbytes memory for TCP/IP packet processing
- Flexible memory allocation
- 10BaseT / 100Base TX Ethernet PHY Embedded
- Support Auto-Negotiation (Full & Half Duplex, 10 & 100 Based)
- Support Auto-MDIX
- 3.3V Operation with 5V I/O signal tolerance
- LED outputs (TX, RX, full/half duplex, Collision link speed)
- 100LQFP lead-free package (14x14mm)
Documentation
datasheet
| Title | Description | Notes |
|---|---|---|
 W5300 Datasheet | Technical specifications and features of the W5300 chip | - |
Technical Documents
| Title | Description | Notes |
|---|---|---|
| Comparision sheet of W5300 & W5100 | Comparison between W5300 and W5100 | - |
Software Resources
- Driver
- Application Note
Driver
The ioLibrary means "Internet Offload Library" for WIZnet chip. It includes drivers and application protocols. The ioLibrary can be used for W5300 and other chips's application designs. These will be updated continuously.
| Resource | Description |
|---|---|
 ioLibrary_Driver | Official WIZnet driver library for W5300 and other chips |
The ioLibrary_Driver is an MCU-independent library for WIZnet W5x00, W6x00 chips . It provides implementations of essential TCP/IP services, enabling developers to build network applications with minimal MCU dependencies.
Supported services
DHCP, DNS, MQTT, SNTP, TFTP, HTTP Server
Application Note
| Example Name | Description | Notes |
|---|---|---|
| Application Note | How to test internal Memory & PPPoE | - |
