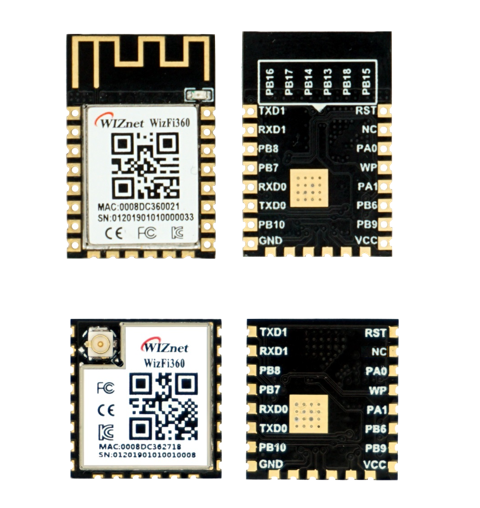

WizFi360 is a low cost and low-power consumption industrial-grade WiFi module. It is compatible with IEEE802.11 b/g/n standard and supports SoftAP, Station and SoftAP+Station modes. The serial port baud rate can be up to 2Mbps, which can meet the requirement of various applications.

Features​

  • WiFi 2.4G, 802.11 b/g/n
  • Supports Station / SoftAP / SoftAP+Station operation modes
  • Supports “Data pass-through” and “AT command data transfer” mode
  • Supports serial AT command configuration
  • Supports TCP Server / TCP Client / UDP operating mode
  • Supports configuration of operating channel 1 ~ 13
  • Supports auto 20MHz / 40MHz bandwidth
  • Supports WPA_PSK / WPA2_PSK encryption
  • Serial port baud rate up from 600bps to 2Mbps with 16 common values
  • Supports up to 5 TCP / UDP links
  • Obtaining IP address automatically from the DHCP server (Station mode)
  • DHCP service for Wireless LAN clients (AP mode)
  • Supports DNS for communication with servers by domain name
  • Supports “Keep-Alive” to monitor TCP connection
  • Supports “Ping” for monitoring network status
  • Built-in SNTP client for receiving the network time
  • Supports built-in unique MAC address and user configurable
  • Supports firmware upgrade by UART Download / OTA (via WLAN)
  • Industrial grade (operating temperature range: -40 ° C ~ 85 ° C)
  • KC, CE, FCC, TELEC certification

Documentation​

TitleDescriptionLinkNotes
DatasheetTechnical specifications. EN-

Software Resources​

TitleDescriptionDownloadNotes
WizFi360 FirmwareWizFi360 firmware github link.link LINK-

Hardware Resources​

TitleDescriptionDownloadNotes
Design GuideDesign guide for using WizFi360. Download-

Test & Certification​

TitleDescriptionDownloadNotes
Certification- DownloadNOV2020
Verification of conformity- DownloadNOV2020
Test Report IEC 62368-1- DownloadNOV2020
Test Report 301 489-1- DownloadNOV2020
Test Report 50663- DownloadNOV2020
Test Report 300 328- DownloadNOV2020

Reference Resources​

WizFi360 is based on the WinnerMicro W600 chip which features ARM Cortex-M3 with 1MB on-chip flash and freeRTOS kernel. This page includes the software development kit (SDK) files, documents, and usage method. This SDK has integrated WizFi360 hardware driver (BSP), RTOS, TCP/IP protocol, Wi-Fi Protocol and other public function modules.

TitleDescriptionDownloadNotes
W600 Chip SDKOfficial SDK from chip vendordownload ZIP-
W600 Flash DriverKEIL Flash Driverdownload ZIP-
W600 User ManualDescribes the basic way to download and compile of W600 SDK Download-

Evaluation Boards​

WizFi360-EVB

WizFi360-EVB-Shield

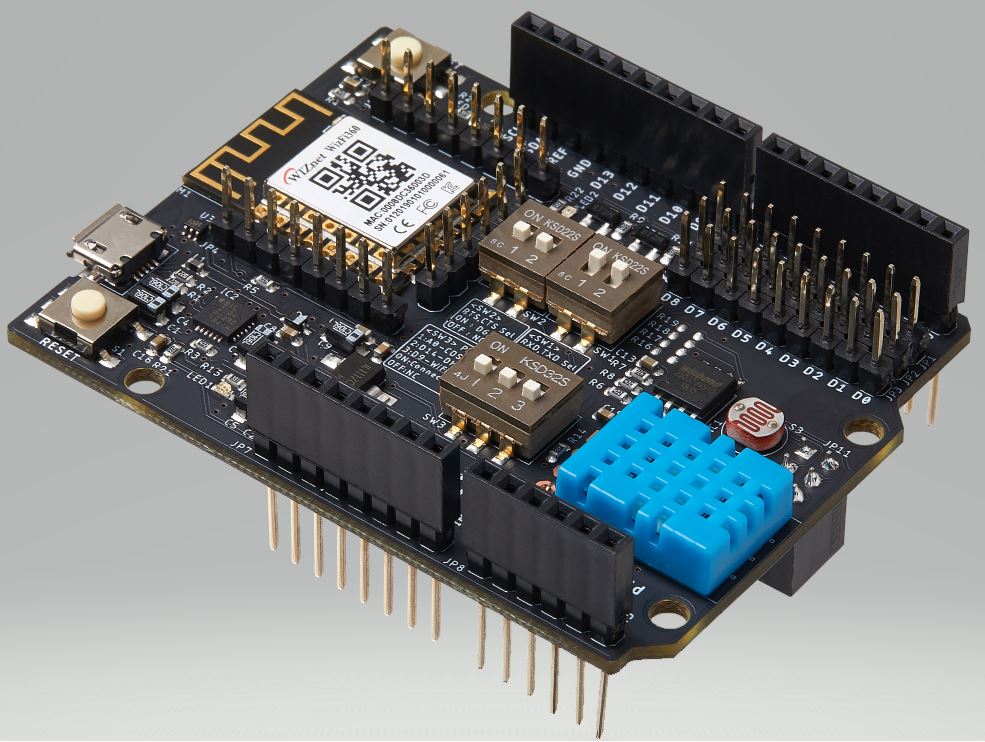

WizFi360-EVB-Shield is a development board for experiment, test and verification of WizFi360.
