WizFi630S
WizFi630S

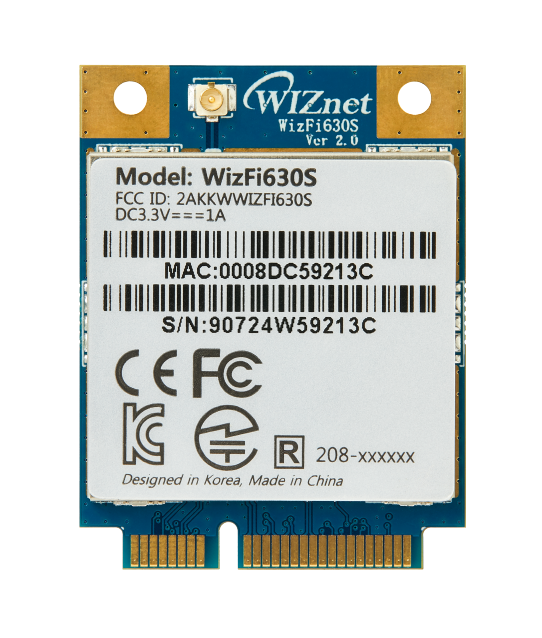

WizFi630S is a gateway module that integrates 1T1R 802.11 Wi-Fi, a 580MHz CPU, Ethernet PHY, USB2.0 host, SD-XC, I2S, I2C and more GPIOs.
WizFi630S enables a device with serial interface to connect to LAN or WLAN for remote control, measuring, and administration. WizFi630S can also work as an IP router because of its internal embedded switch.
WizFi630S supports interfaces like Serial (UART), LAN, and Wi-Fi(WLAN). Functions such as Serial(UART)-To-Wi-Fi, Serial-To-Ethernet and Ethernet-To-Wi-Fi are supported by scripts and/or commands in OpenWRT. Users can connect to WizFi630S’s internal web server or use the serial commands for simple Wi-Fi settings - not only for serial devices but also 8/16/32 bit micro controllers can use UART for simple Wi-Fi settings.
Features
- WizFi630A Pin compatible
- 580MHz Clock
- 16-bit DDR2 128Mbytes SRAM, 32Mbytes SPI Flash
- Complies with IEEE802.11b/g/n.
- Gateway/AP(Bridge)/AP-Client/Client(Station)/Ad-hoc Mode , WDS/Repeater supports
- 1T1R RF Interface (2.4G only)
- Physical link rate up to 150Mpbs
- Built-in 3 Ethernet Ports
- 2 Serial Ports supports
- Working as Wi-Fi Router
- WEP 64/128bit, WPA/WPA2-PSK TKIP, AES
- Router and Firewall function supports
- Operating temperature range: -25° C ~ 80° C
- CE, FCC, KC, RoHS certification
Documentation
- Technical Documents
- Guide
| Title | Description | Link | Notes |
|---|---|---|---|
| Datasheet | Technical specifications |  EN | - |
| Title | Description | Link | Notes |
|---|---|---|---|
| User Manual | This document provides basic operating method for beginner. | EN / 한국어 | - |
| Peripherals | Explain the peripheral functions of each pins of WizFi630S. | EN / 한국어 | - |
| Cross Compile | How to do Cross Compile C lang. | EN / 한국어 | - |
| GPIO | How to use GPIO. | EN / 한국어 | - |
| UART | How to use UART. | EN / 한국어 | - |
| Migration guide | This document provides a guide for users to migrate from the old WizFi630A, the new WizFi630S. | EN / 한국어 | - |
Hardware Resources
| Title | Description | Download | Notes |
|---|---|---|---|
| Design Guide | Design guide for using WizFi630S. | EN / 한국어 | - |
Test & Certification
- CE
- FCC
- KC
- J-MIC(TELEC)
- RoHS
- Reliability
- EN 62386-1:2014+A11:2017
- EN 62311:2008
- EN 301 489-1 V2.1.1
- EN 301 489-17 V3.1.1
- EN 300 328 V2.1.1
| Title | Description | Download | Notes |
|---|---|---|---|
| Certificate | - | Download | JUL2019 |
| LVD test report | - | Download | JUL2019 |
| 300 328 test report | - | Download | JUL2019 |
| 301 489 test report | - | Download | JUL2019 |
| 62311 test report | - | Download | JUL2019 |
- 47 CFR Part 15C
- ANSI C63.10 2013
| Title | Description | Download | Notes |
|---|---|---|---|
| Certification | - | Download | JUL2019 |
| Test Report | - | Download | JUL2019 |
- KS X 3123: Conformity assessment test methods for radio equipment
| Title | Description | Download | Notes |
|---|---|---|---|
| Certification | - | Download | AUG2019 |
| Test Report | - | Download | AUG2019 |
- Article 2 Section 1, No.19
| Title | Description | Download | Notes |
|---|---|---|---|
| Certification | - | Download | AUG2019 |
| Test Report | - | Download | AUG2019 |
- 2011/65/EU Annex II amending Annex (EU)2015/863 and amending Annex (EU)2017/2102
| Title | Description | Download | Notes |
|---|---|---|---|
| RoHS 2.0 report | - | Download | AUG2019 |
Test Standard Condition
- IEC 60068-2-1 : Cold
- IEC 60068-2-2 : Dry heat
- IEC 60068-2-14 : Rapid change of temperature with prescibed time of transfer
Test Condition
- 60068-2-78 : Humidity operation
- 60068-2-30 : Humidity cycling operation
| Title | Description | Download | Notes |
|---|---|---|---|
| KORAS Operation Test Report | - | Download | Nov2019 |
| Operation Test Report | - | Download | Nov2019 |
Reference Resources
WizFi630S supports OpenWrt system as a main operating system. OpenWrt is a highly extensible GNU/Linux distribution for embedded devices (typically wireless routers). Unlike many other distributions for routers, OpenWrt is built from the ground up to be a full-featured, easily modifiable operating system for embedded devices. This parts provides links to virtually all the information about OpenWrt for Newcomer, User, Developer.
| Title | Description | Download | Notes |
|---|---|---|---|
| Quick start guide | OpenWrt quick start guide. |  LINK | - |
| User guide | OpenWrt user guide. | LINK | - |
| Developer guide | OpenWrt developer guide. | LINK | - |
| Technical Reference | OpenWrt technical reference. | LINK | - |
