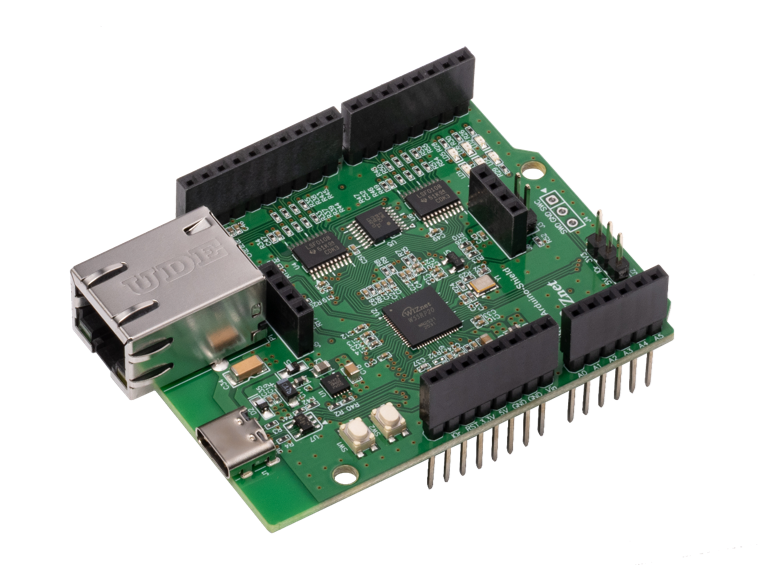

W55RP20-arduino

Overview​

W55RP20-arduino is an evaluation board for W55RP20, a chip that combines W5500, a wired TCP/IP controller, and RP2040. Therefore, both the functions of Raspberry Pi Pico and those of the W5500 are available.

  • Raspberry Pi Pico Clone
  • Ethernet (W55RP20 Hardwired TCP/IP CHIP)

W55RP20-arduino

Features​

  • W55RP20 microcontroller
    • Internal 2MByte Flash
    • Dual-core cortex M0+ at up to 133MHz
    • 264kByte multi-bank high performance SRAM
    • External Quad-SPI Flash with eXecute In Place (XIP)
    • High performance full-crossbar bus fabric
    • 22 multi-function General Purpose IO (4 can be used for ADC)
      • 1.8-3.3V IO Voltage (NOTE. Pico IO voltage is fixed at 3.3V)
    • 12-bit 500ksps Analogue to Digital Converter (ADC)
    • Various digital peripherals
      • 2 × UART, 2 × I2C, 2 × I2C, 2 × SPI, 16 × PWM channels
      • 1 × Timer with 4 alarms, 1 × Real Time Counter
    • 2 × Programmable IO (PIO) blocks, 8 state machines total
    • Flexible, user-programmable high-speed IO
    • Can emulate interfaces such as SD Card and VGA
    • Supports Hardwired Internet Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
    • Supports 8 Independent Hardware SOCKETs simultaneously
    • Internal 32 Kbytes Memory for TX/ RX Buffers
    • Supports High Speed Serial Peripheral Interface(SPI MODE 0, 3)
  • USB C port for power and data (and for reprogramming the Flash)
  • 3-pin ARM Serial Wire Debug (SWD) port
  • 10 / 100 Ethernet PHY embedded
  • Supports Auto Negotiation
    • Full / Half Duplex
    • 10 / 100 Based
  • Built-in RJ45 (POE)
  • Built-in DCDC (PWM/PFM)
  • Additional modules are installed to enable POE

Hardware Specification​

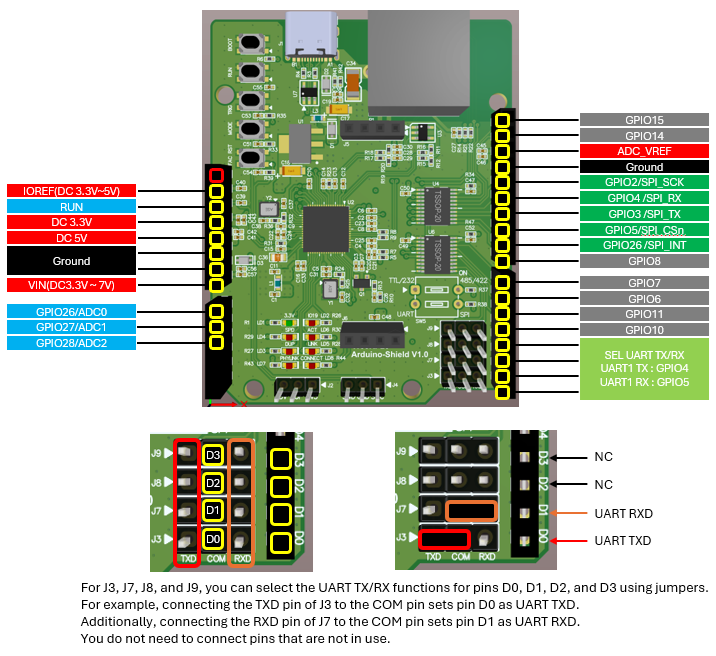

Pin-out​

W55RP20-arduino

This product is optimized for an external input DC range of 5V to 3.3V. Excessive heat generation may occur when supplying DC power of 7V or higher.

Technical Reference​

RP2040 Datasheet​

W5500 Datasheet​

W55RP20 Datasheet​

Schematic​

Schematic & Part list & Gerber File​

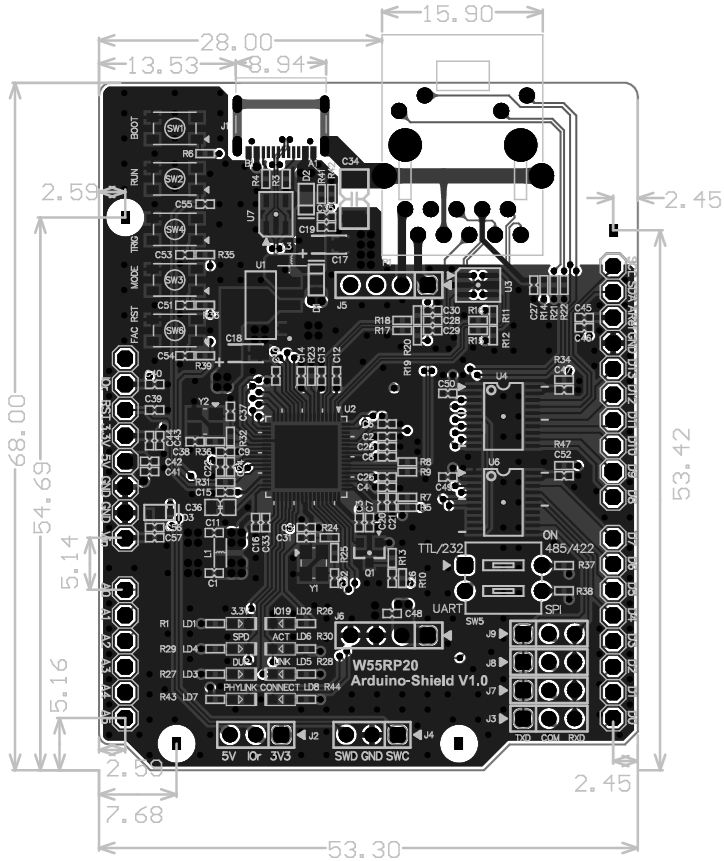

Dimension (Unit : mm)​

W5500-EVB-RP2040

Firmware Example​

Please refer to below links to find firmware example.

Application Notes​

C/C++​
