W55MH32Q-EVB

L-EVB

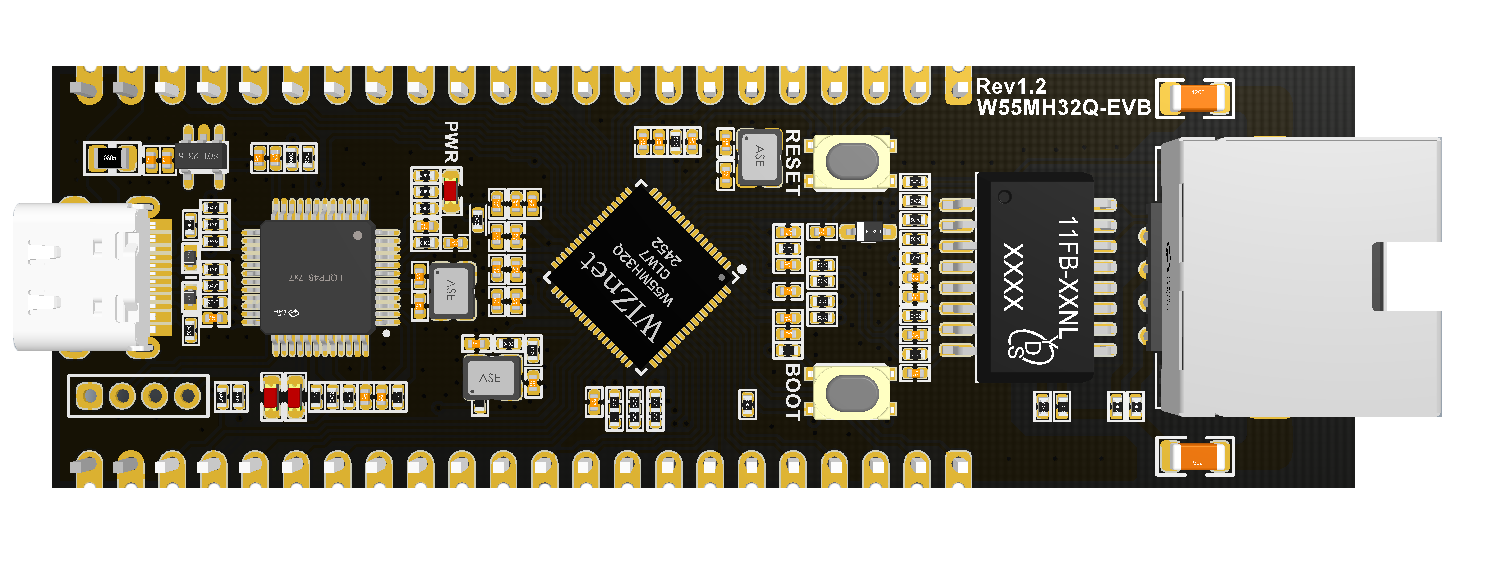

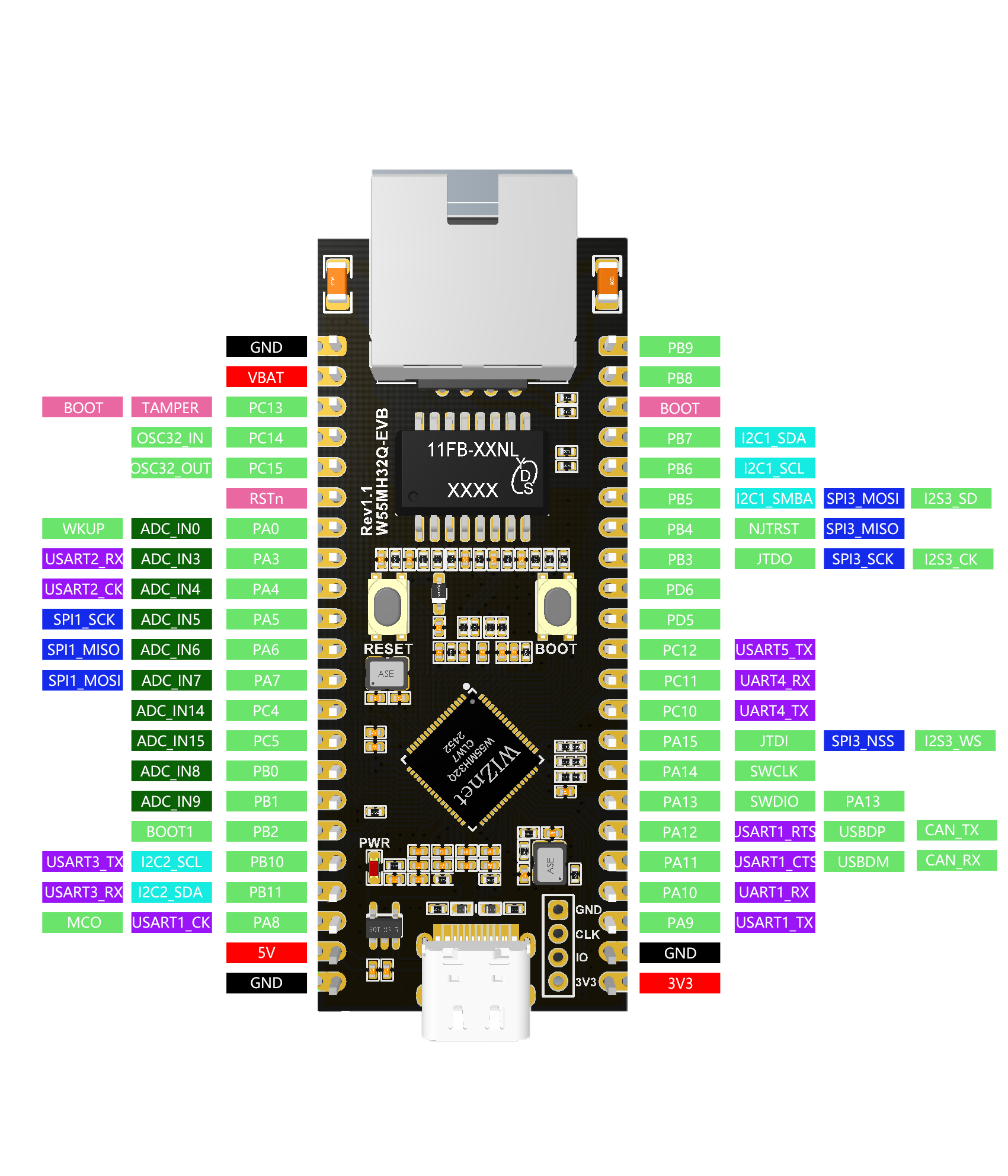

Overview

The W55MH32Q-EVB is an advanced evaluation board built around the W55MH32Q microcontroller, offering robust performance and efficient networking capabilities for industrial, IoT, and embedded system applications. Powered by a 216MHz 32-bit processor, it integrates 1024KB Flash and 96KB SRAM, ensuring high-speed data processing.

Designed with embedded networking in mind, it features a hardware TCP/IP offload engine supporting TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE protocols, along with 10/100M Ethernet MAC & PHY for reliable connectivity. With 8 independent sockets and 32KB dedicated TX/RX memory, the W55MH32Q-EVB provides stable network communication.

For real-time control and expansion, the board includes 3 × USART, 2 × I2C, 2 × SPI, CAN, USB 2.0, 14 × 16-bit timers, watchdog timers, and a 12-channel DMA controller. It also supports hardware encryption, CRC calculation, true random number generation, and voltage & temperature monitoring for enhanced security and reliability.

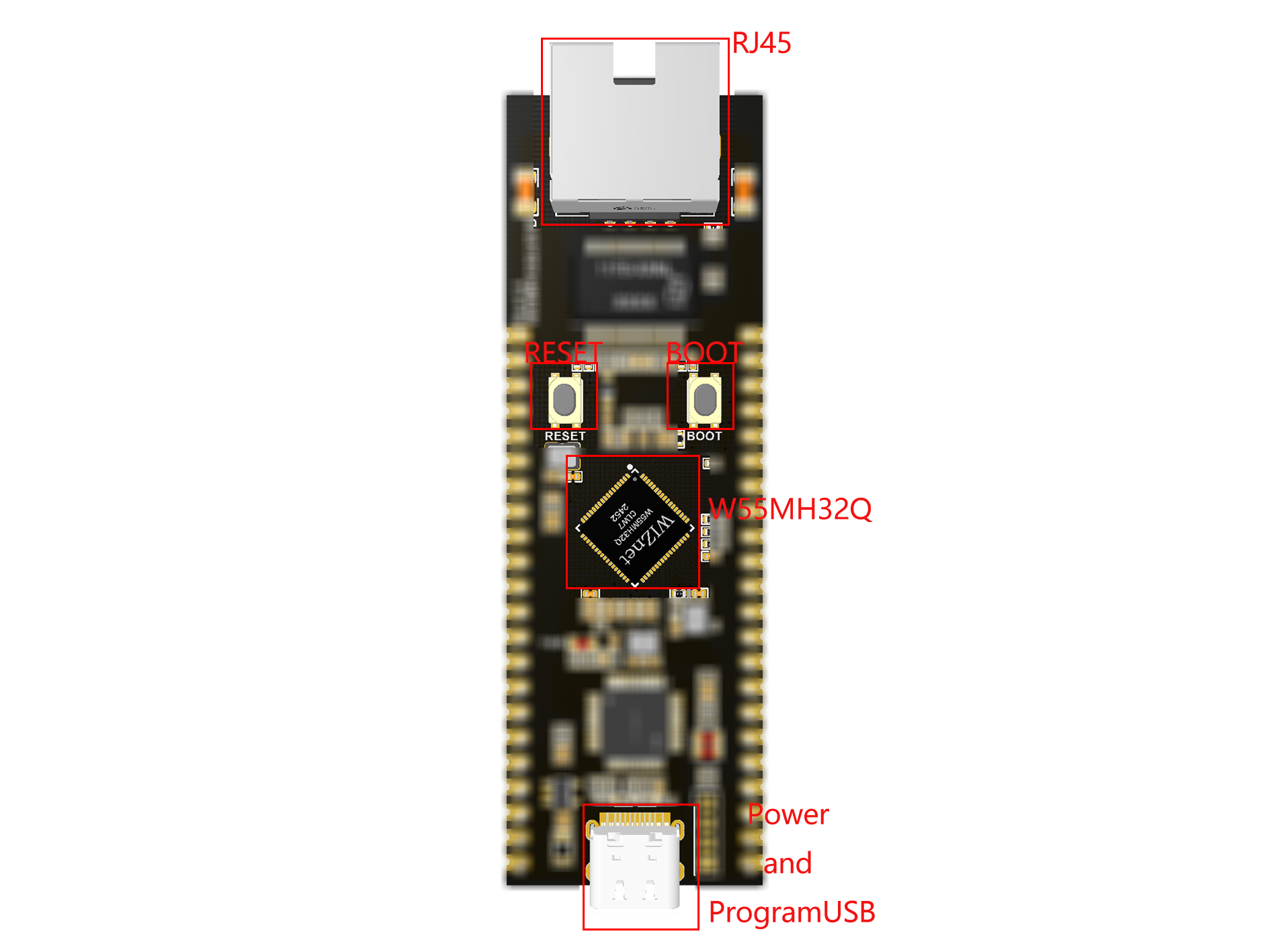

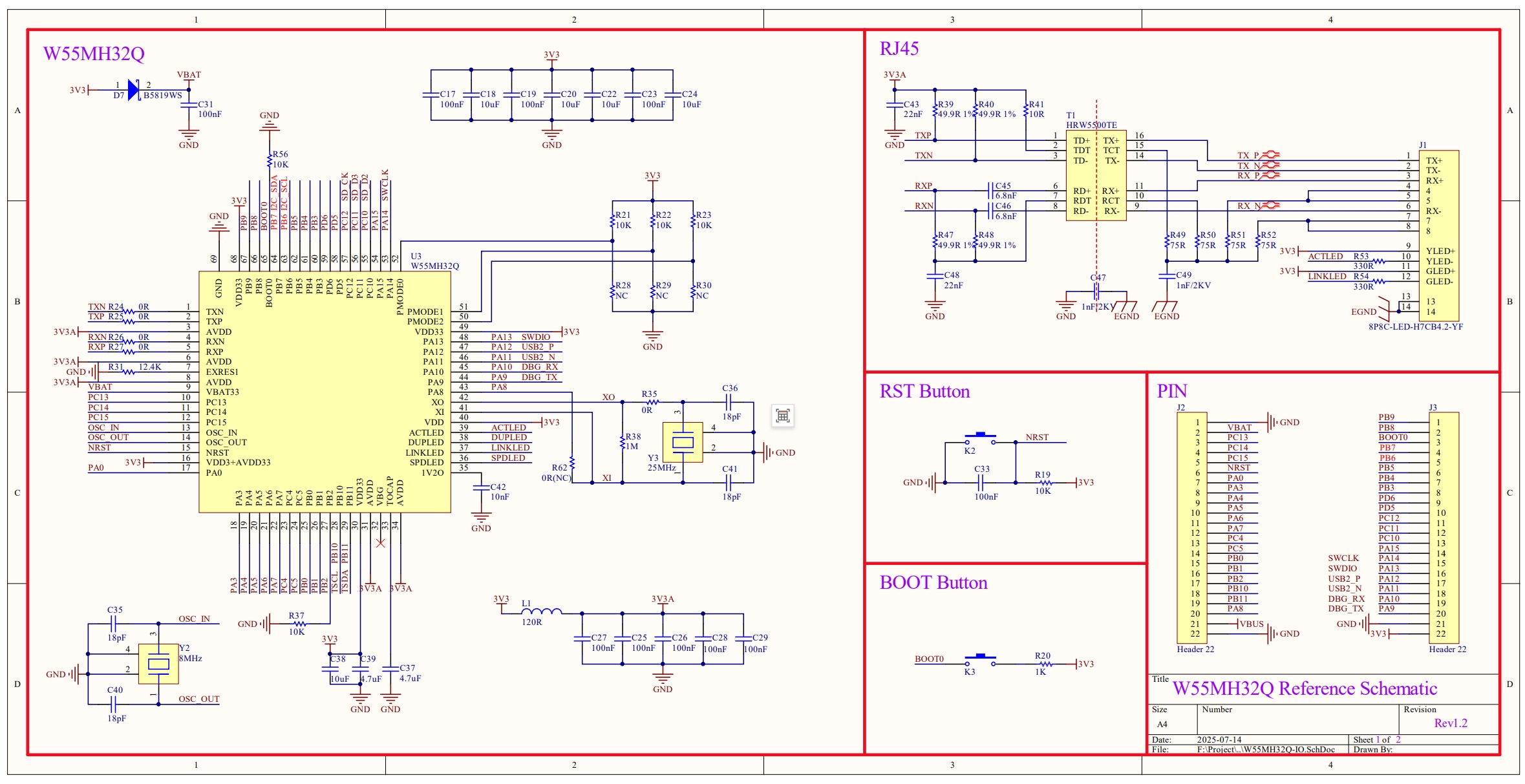

Additional features like USB-C for power and data, built-in RJ45, onboard DCDC converter, and SWD debugging interface make the W55MH32Q-EVB a versatile platform for developers exploring secure, high-speed networking solutions. Whether for automation, security, smart energy systems, or industrial networking, this board offers a comprehensive development platform with future-proof connectivity.

W55MH32L-EVB

Features

- W55MH32Q microcontroller
  - 32-bit Processor core, Up to 216MHz operation
  - 1024KB Flash, 96KB SRAM
  - 3 × 12-bit, 1µs A/D converters
  - 2 × 12-bit D/A converters
  - 12-channel DMA controller
  - Various digital peripherals:
    - 2 × I2C, 3 × USART, 2 × SPI, CAN, USB2.0
    - 14 × 16-bit timers, 2 watchdog timers, SysTick timer, 24-bit downcounter
  - Enhanced CRC calculation unit
  - Hardware encryption algorithm unit
  - Generate sequence of true random numbers
  - Voltage & temperature sensor alarm
  - TCP/IP offload engine
    - 10/100M Ethernet MAC and PHY
    - Supports the following Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
    - Supports 8 independent sockets simultaneously
    - Internal 32KB Memory for Tx/Rx Buffers
    - Supports Auto Negotiation
- 3-pin ARM Serial Wire Debug (SWD) port
- USB-C port for power and data
- Built-in RJ45
