WIZ-IP51S
Overview
The WIZ-IP51S is a network offloading module that integrates the W5100S chip (with built-in PHY physical layer and TCP/IP hardware protocol stack) and an RJ45 connector with integrated network transformer. As a plug-and-play component, it enables seamless interface connection between the W5100S and the transformer without the need for additional circuit design.
For users who wish to quickly develop networked systems, the WIZ-IP51S is an ideal choice.
 |

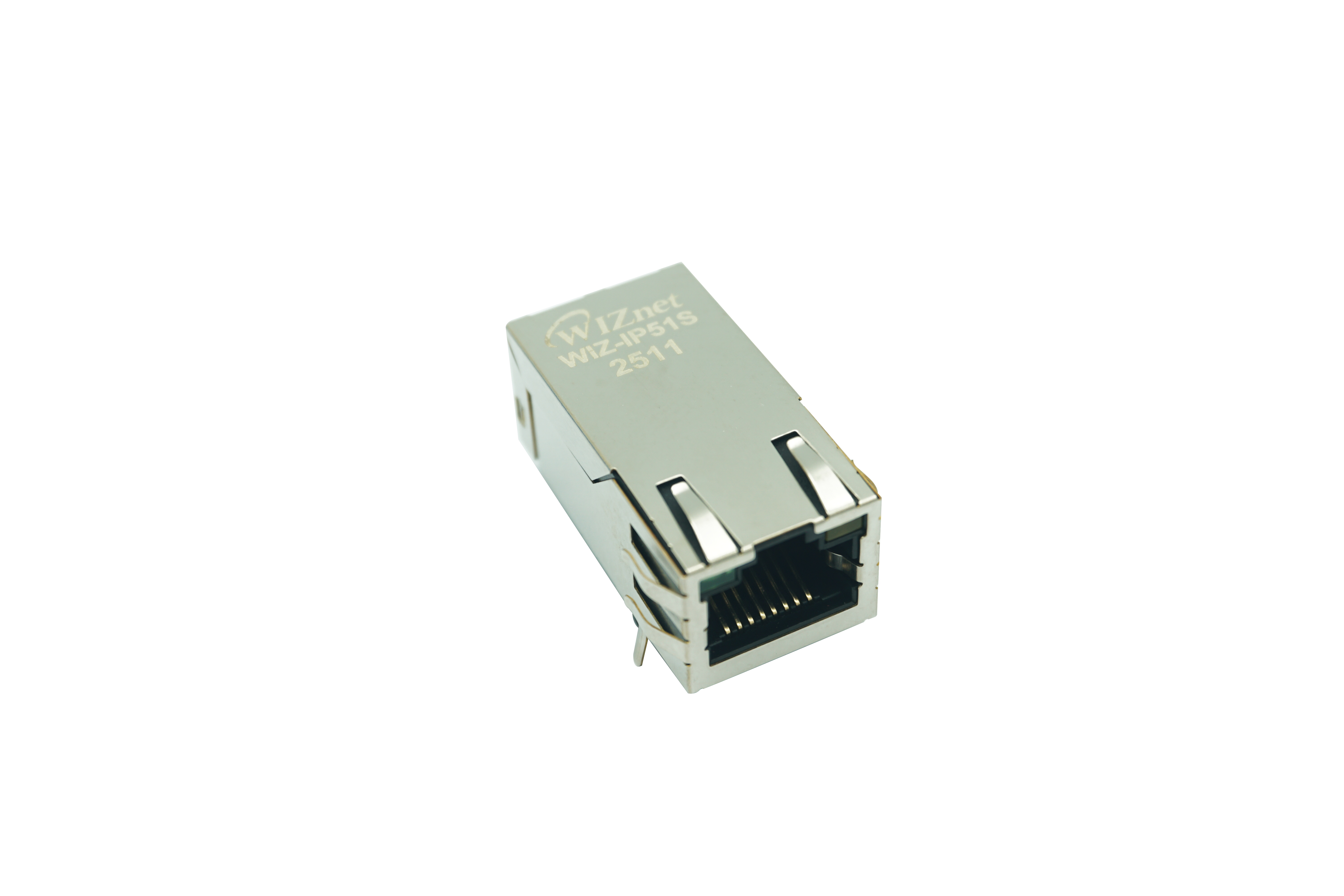

| Figure: WIZ-IP51S |
Feature
- Supports full hardware TCP/IP protocol: TCP, UDP, WOL, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
- Supports SOCKET-less instructions: ARP-request, PING-request
- Supports 4 independent SOCKET concurrent communication
- Supports half-duplex/full-duplex operation mode
- Supports Ethernet power-off mode and master clock selection energy-saving mode
- Supports UDP-based network wake-up (WOL) function
- High-speed SPI interface (MODE 0/3)
- Built-in total 16Kbytes of send/receive cache
- Integrated 10BaseT/100BaseTX Ethernet PHY
- Supports Ethernet auto-negotiation (full/half-duplex, 10Base-T/100Base-TX)
- Supports Auto-MDIX function (only supported in Ethernet auto-negotiation mode)
- Operating voltage: 3.3V (I/O compatible with 5V signal voltage)
- 19-pin pin header interface
- Package size (length×width×height):32.5×16.5×17.3(mm)
- Compatible with WIZnet's IO module carrier board development board
Getting Started
- Coming soon
User Manual
Technical Reference
Schematic & Part list & Gerber
- 🌎TBD
Ethernet Library
