WIZ-IP55
Overview
WIZ-IP55 is a network offloading module that integrates the W5500 chip (with built-in PHY physical layer and TCP/IP hardware protocol stack) and an RJ45 connector with integrated network transformer. As a plug-and-play component, it enables seamless interface connection between the W5500 and the transformer without the need for additional circuit design.
For users who wish to quickly develop networked systems, WIZ-IP55 is an ideal choice.
 |

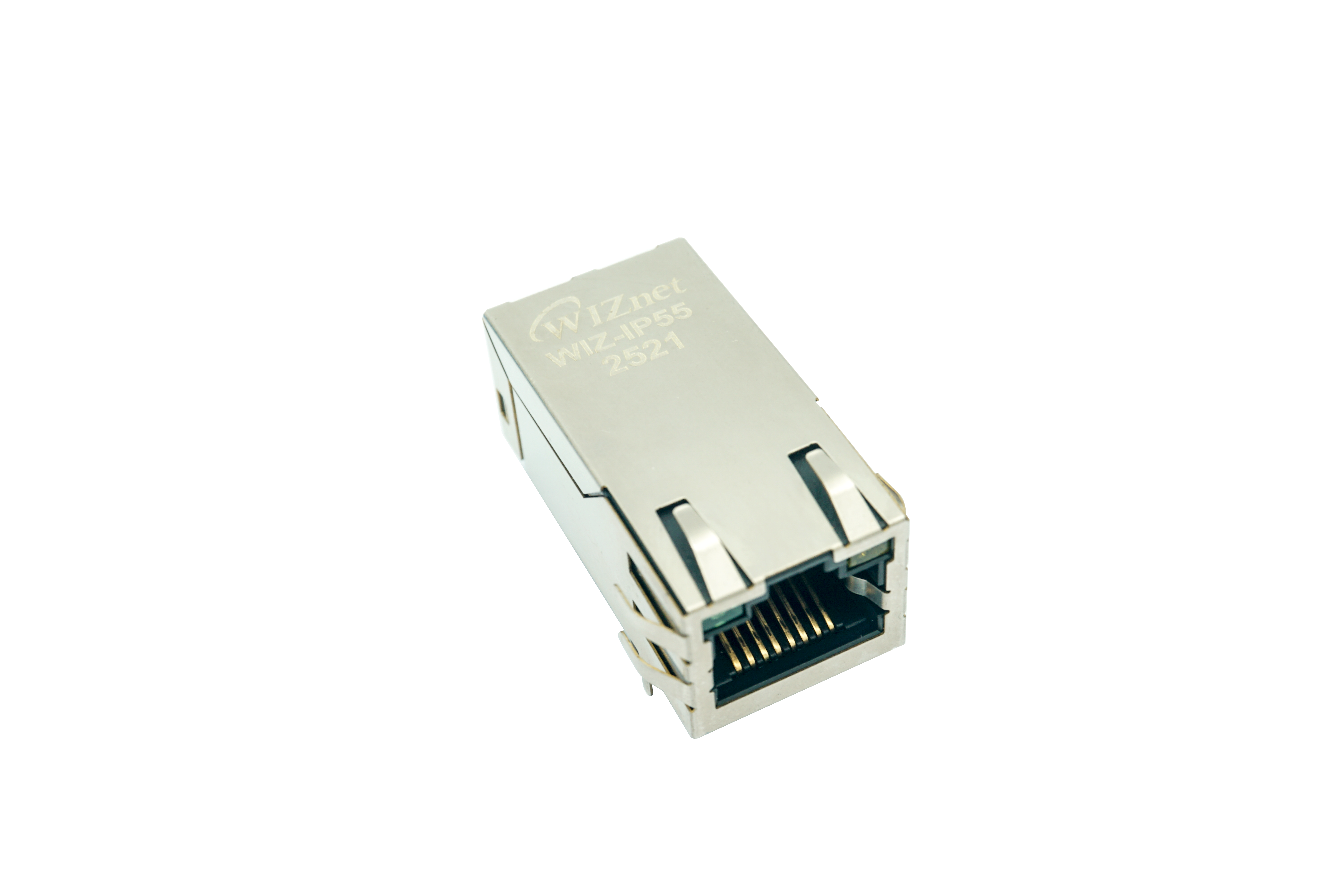

| Figure: WIZ-IP55 |
Feature
- Supports full hardware TCP/IP protocol: TCP, UDP, WOL, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
- Supports 8 independent SOCKET concurrent communication
- Supports half-duplex/full-duplex operation mode
- Supports Ethernet power-off mode
- Supports UDP-based network wake-up (WOL) function
- High-speed SPI interface (MODE 0/3)
- Built-in total 32Kbytes of send/receive cache
- Integrated 10BaseT/100BaseTX Ethernet PHY
- Supports Ethernet auto negotiation (full/half-duplex,10Base-T/100Base-TX)
- Operating voltage:3.3V (I/O compatible with 5V signal voltage)
- 19-pin pin header interface
- Package size (length×width×height):32.5×16.5×17.3(mm)
- Compatible with WIZnet's IO module carrier board development board
Getting Started
- Coming soon
User Manual
Technical Reference
Schematic & Part list & Gerber
- TBD
Ethernet Library
