EOE-W55RP20
Overview
The EOE-W55RP20 is a compact Ethernet MCU module based on the WIZnet W55RP20, integrating a dual-core Arm Cortex-M0+ MCU and a Hardwired TCP/IP Ethernet controller in a small form factor. The module is supplied without application firmware by default, allowing firmware to be configured according to the customer's application requirements. WIZnet can provide ready-to-use or customized firmware for various applications, including Serial-to-Ethernet, multi-port Serial-to-Ethernet, SNMP, and other customer-specific network applications. This approach allows customers to use the same compact hardware platform while selecting the firmware functionality required for their product.
Specifications
| Item | Specification |
|---|---|
| Type | Customizable Ethernet MCU Module |
| Main device | W55RP20: dual-core Arm Cortex-M0+ MCU up to 133 MHz, integrated W5500, and 2 MB flash |
| Ethernet | 10/100 Mbps Ethernet, IPv4 |
| Host interface | UART or SPI, selected by SPI_IF_SEL |
| Serial interfaces | Multiple UART interfaces available depending on firmware and hardware configuration |
| Available protocols | MQTT / MQTTS, SSL/TLS, Modbus RTU/ASCII |
| Configuration | Serial AT commands or the Configuration Tool; WIZ VSP (Virtual Serial Port) supported |
| Debug | SWD and a separate Debug UART |
| USB | Native USB signals exposed on the module interface |
| On-module clocks | 12 MHz oscillator (MCU core) + 25 MHz crystal (Ethernet PHY) — no external clock required |
| Supply | 3.3 V single rail; the 1.1 V core rail is generated by the W55RP20 internal regulator |
| Operating temperature | −40 ℃ ~ +85 ℃ |
| MAC address | Unique WIZnet MAC address pre-assigned |
| Size | 18.3 × 26.15 mm |
| Pin pitch | 1.1 mm |
| Module interface | 70-pin castellated edge interface (23 / 12 / 23 / 12 across the four sides) |

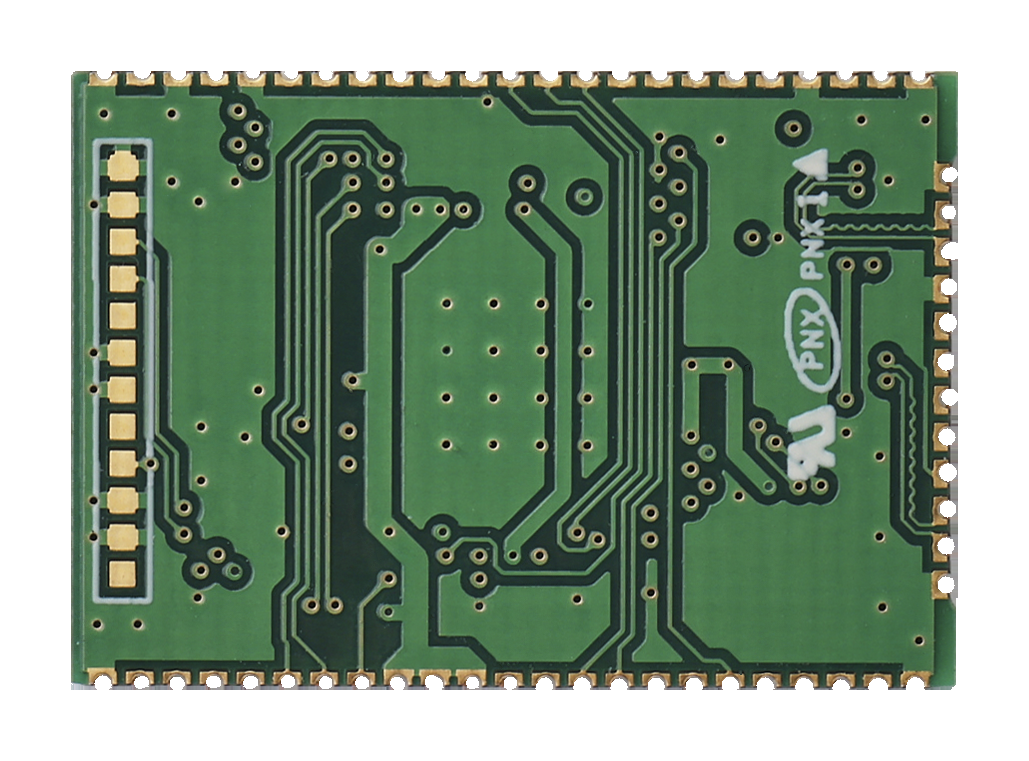

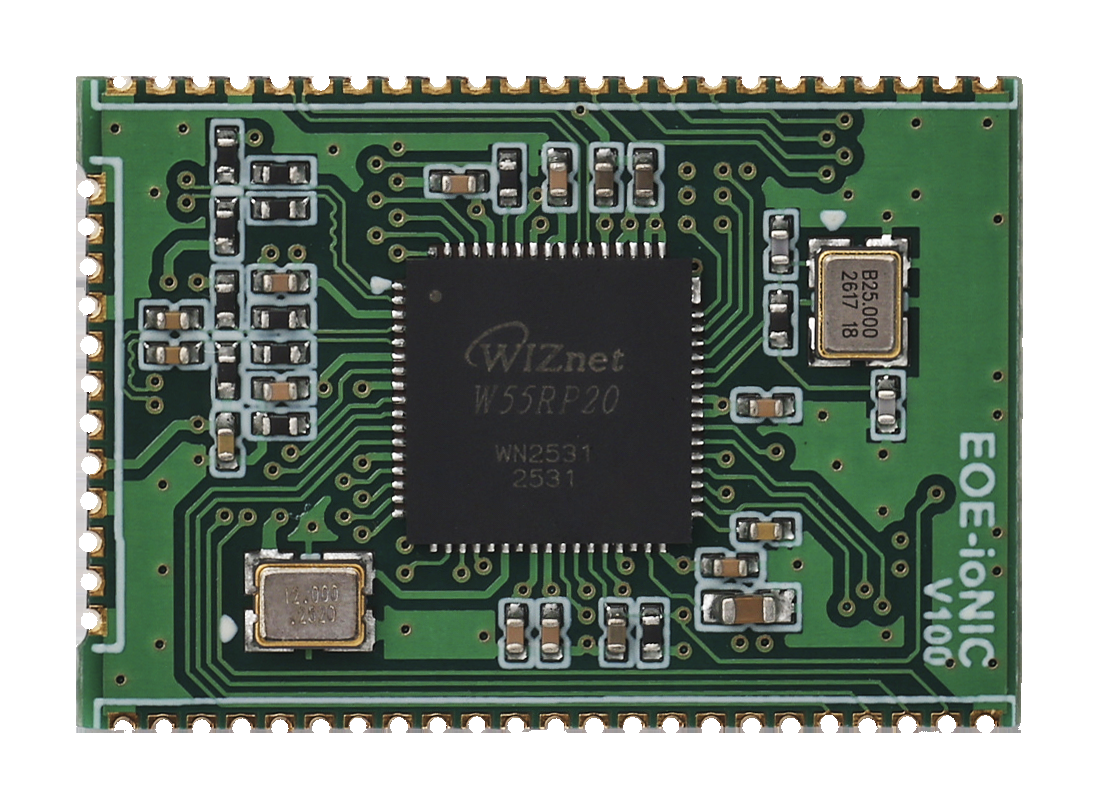

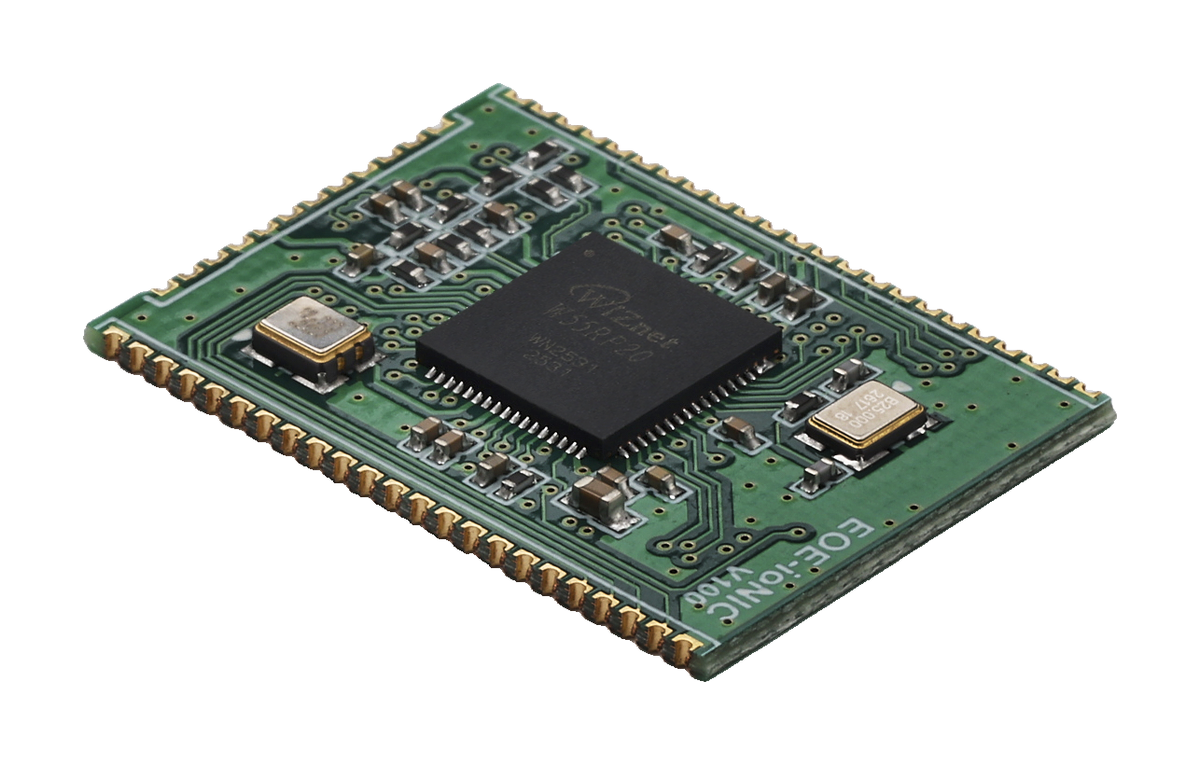

Product Views
Firmware Options
The EOE-W55RP20 is designed as a flexible hardware platform that can support different firmware configurations depending on the customer's application.
Typical firmware options include:
- Serial-to-Ethernet
- 2-Port Serial-to-Ethernet
- 3-Port Serial-to-Ethernet
- 4-Port Serial-to-Ethernet
- SNMP applications
- Customer-specific Ethernet applications
Serial-to-Ethernet firmware is available as a standard firmware option. For applications requiring multiple serial channels, 2-Port, 3-Port, and 4-Port Serial-to-Ethernet firmware can also be provided upon request. Additional protocols or application-specific functions can also be implemented through WIZnet's custom firmware service.
Custom Firmware Service
WIZnet can configure the EOE-W55RP20 firmware according to customer requirements. The module is not limited to a single predefined application. Customers can select the required communication interfaces, network protocols, and application functions. Examples include:
- Number of serial ports
- Serial-to-Ethernet functionality
- TCP/UDP communication
- Modbus communication
- MQTT communication
- SNMP applications
- Device monitoring and control functions
- Customer-specific network protocols and application logic
Firmware requirements can be discussed and configured with WIZnet according to the target application.
Documentation
| Document | Description |
|---|---|
| Datasheet (English) | Hardware specification and module interfaces |
| 데이터시트 (한국어) | 하드웨어 사양 및 모듈 인터페이스 |
| Configuration Tool Guide | Configuration Tool setup and use |
Related Products
| Product | Description |
|---|---|
| EOE-W55RP20-EVB | Evaluation board for EOE-W55RP20 |
