W6300

W6300 is a hardwired TCP/IP stack internet controller chip with WIZnet technology, designed for high-speed Ethernet communication. It integrates Dual IPv4/IPv6 hardware stack, 10/100 Ethernet MAC, and PHY in a single chip. To achieve performance over 90Mbps, W6300 supports a 150MHz system clock and QSPI interface with 4 data lines. It provides 8 independent SOCKETs and 64KB of internal SRAM, enabling reliable Ethernet application development through socket programming.

Block Diagram
W6300_Block_Diagram
Details

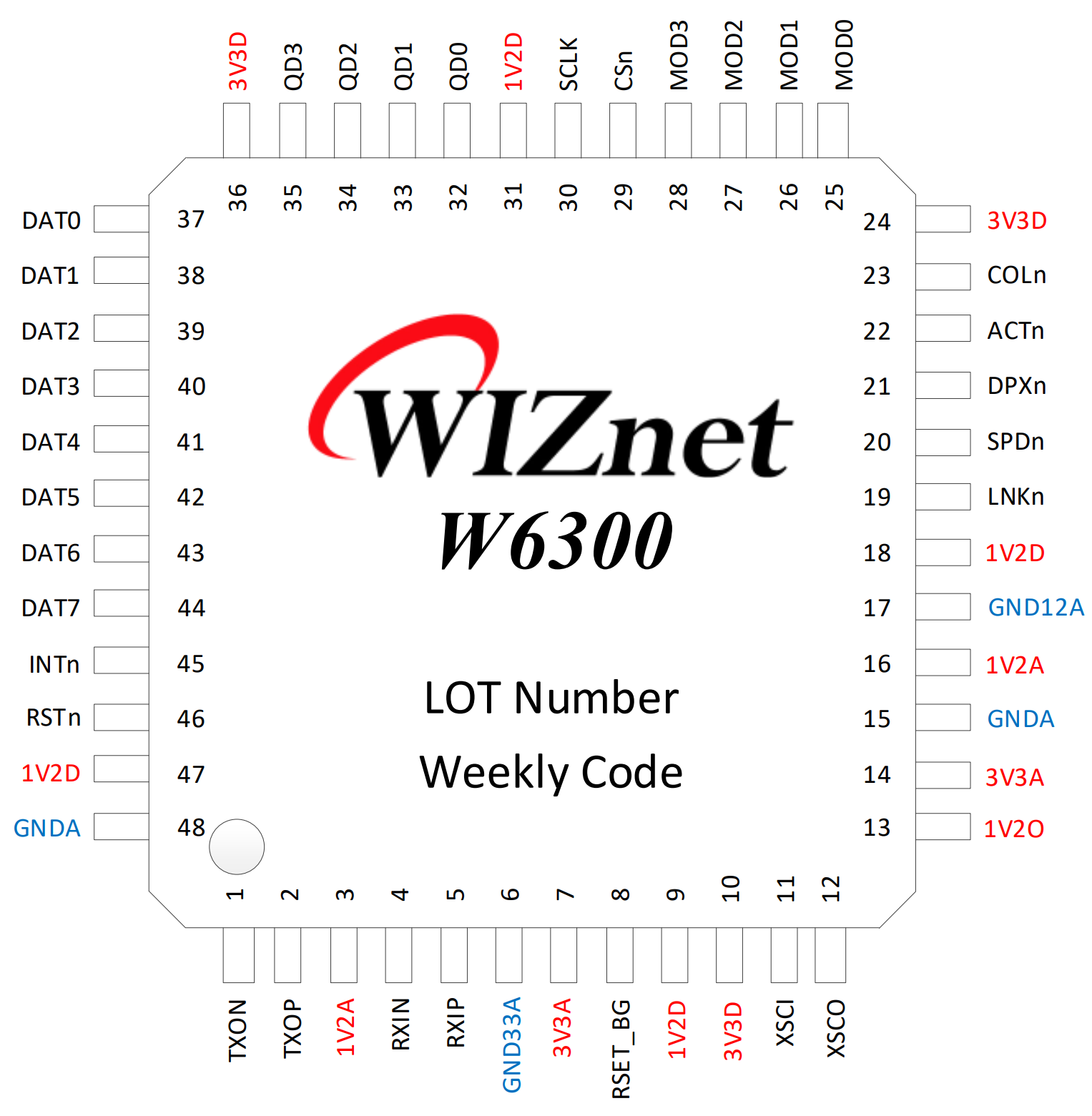

Pin Map TBD

Features​

  • Supports following Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, IPv6, ARP, IGMP, PPPoE
  • Supports 8 independent sockets simultaneously
  • Supports Power down mode
  • Supports Wake on LAN over UDP
  • Supports High Speed Serial Peripheral Interface(SPI MODE 0, 3)
  • Internal 32Kbytes Memory for Tx/Rx Buffers
  • 10BaseT/100BaseTX Ethernet PHY embedded
  • Support Auto Negotiation (Full and half duplex, 10 and 100-based)
  • Not support IP Fragmentation
  • 3.3V operation with 5V I/O signal tolerance
  • LED outputs (Full/Half duplex, Link, Speed, Active)
  • 48 Pin LQFP Lead-Free Package (7x7mm, 0.5mm pitch)

Documentation​

datasheet​

TitleDescriptionNotes
📄 W6300 Datasheet (EN)Technical specifications and features of the W6300 chip-

Software Resources​

Driver

The ioLibrary means "Internet Offload Library" for WIZnet chips.
It includes drivers and application protocols.
The ioLibrary can be used for W6100 and other chips’ application designs.
These will be updated continuously.

ResourceDescription
link ioLibrary_DriverOfficial WIZnet driver library for W5x00/W6x00 chips
info

The ioLibrary_Driver is an MCU-independent library for WIZnet W5x00, W6x00 chips.
It provides implementations of essential TCP/IP services, enabling developers to build network applications with minimal MCU dependencies.

Supported services​

DHCP, DNS, MQTT, SNTP, TFTP, HTTP Server

Hardware Resources​

Technical Resources​

ResourceDescriptionNotes
link W6300-EVB-Pico SCH & PCB LibrarySchematic & Part list & Gerber File-
link W6300-EVB-Pico2 SCH & PCB LibrarySchematic & Part list & Gerber File-
link Design GuideTBD-
link Reference Schematic (Ext.)External Transformer schematicIncludes recommended circuit design
link Reference Schematic (RRJ45)TBD-

Test & Certification​

ResourceDescriptionNotes
link ESD TestTBD-
link Ethernet Compliance TestTBD-
link Distance TestTBD-
link EMC TestTBD-
link Reliability TestTBD-
link CertificateTBD-

Evaluation Boards​

W6300-EVB-Pico

W6300-EVB-Pico

W6300-EVB-Pico is a microcontroller evaluation board based on the Raspberry Pi RP2040 and fully hardwired TCP/IP controller W6300 – and basically works the same as Raspberry Pi Pico board but with additional Ethernet via W6300.

w6300-evb-pico2

W6300-EVB-Pico2

W6300-EVB-Pico2 is a microcontroller evaluation board based on the Raspberry Pi RP2350 and the fully hardwired TCP/IP controller W6300 enhancing the capabilities of the traditional Raspberry Pi Pico2 board with additional Ethernet functionality via W6300.
