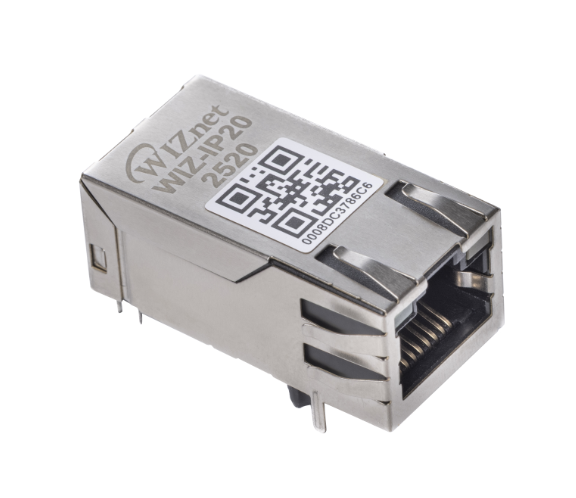

WIZ-IP20

Form factor: Plug-in Port module
Pin pitch: 2.54 mm

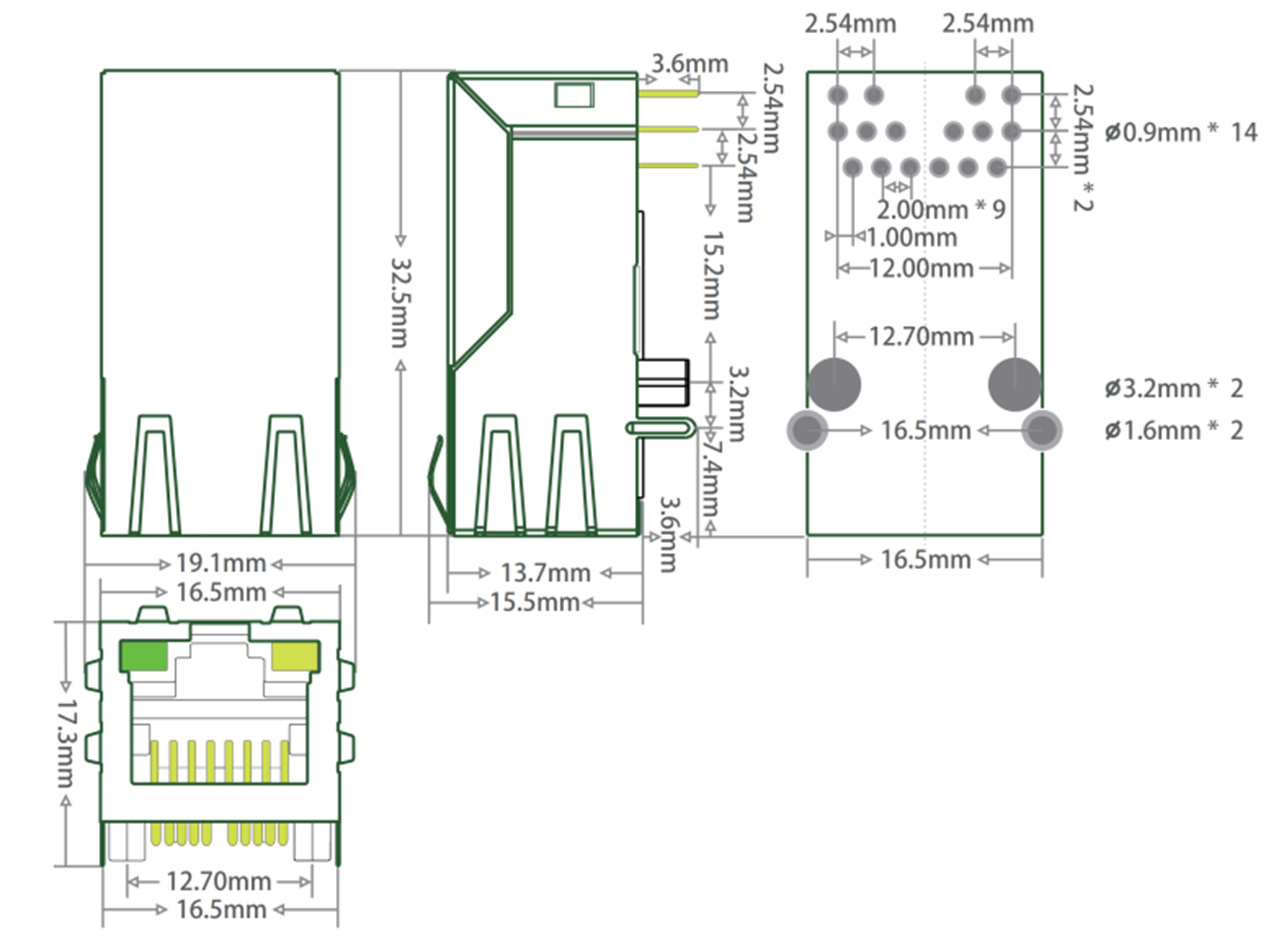

Dimensions: 32.5 × 16.5 mm

WIZ-IP20 is a Serial to Ethernet converter in Mag Jack based on WIZnet's W55RP20 MCU.

WIZnet 'Serial to Ethernet' product is a protocol converter that transmits data sent by serial equipment as TCP/IP data and converts the TCP/IP data received through the network back into serial data to the serial equipment.
With this product, it is possible to easily add an Ethernet networking function to a device supporting UART/SPI interface, the devices can be controlled via an Ethernet network - Internet.
We also provide Customization Services such as change / add functions by customer request.

Features

The following key features are included with the WIZ-IP20 product.

10/100Mbps Ethernet & Up to 921,600bps serial speed
Easy to add Ethernet networking function through UART or SPI interface of any device / MCU
Support RS-232C and RS-422/485 if an external circuit is configured.

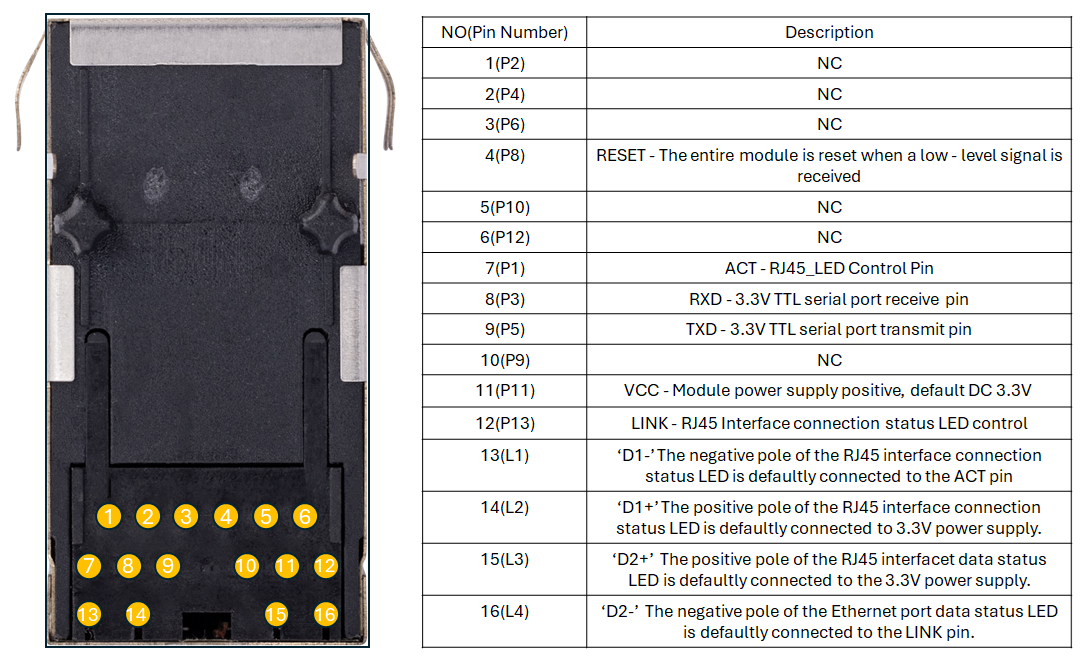

Status pins: PHY link status / TCP connection status / Run status
Support multiple protocols
- TCP Server
- TCP Client
- SSL TCP Client
- TCP Mixed
- Modbus RTU/ASCII (available only in TCP Server mode)
- UDP (multicast supported)
- MQTT Client
- MQTTS Client
Support custom protocols (Please submit custom protocol requests via this link.)
- HTTP
- HTTPS
- CoAP
- External device OTA
Support serial data packing
Support TCP connection password
Configuration is possible via serial AT commands or via Configuration tool
Separate Data UART and Debug UART port
Unique MAC Address (WIZnet OUI)

This section provides key documentation, including user manuals and datasheets, to help you understand product features, specifications, and usage.

This section provides essential hardware resources, including schematics, 3D models, and part lists for your reference.

Title	Description	Download	Notes
Schematic	Circuit diagram for hardware design reference	download	-
