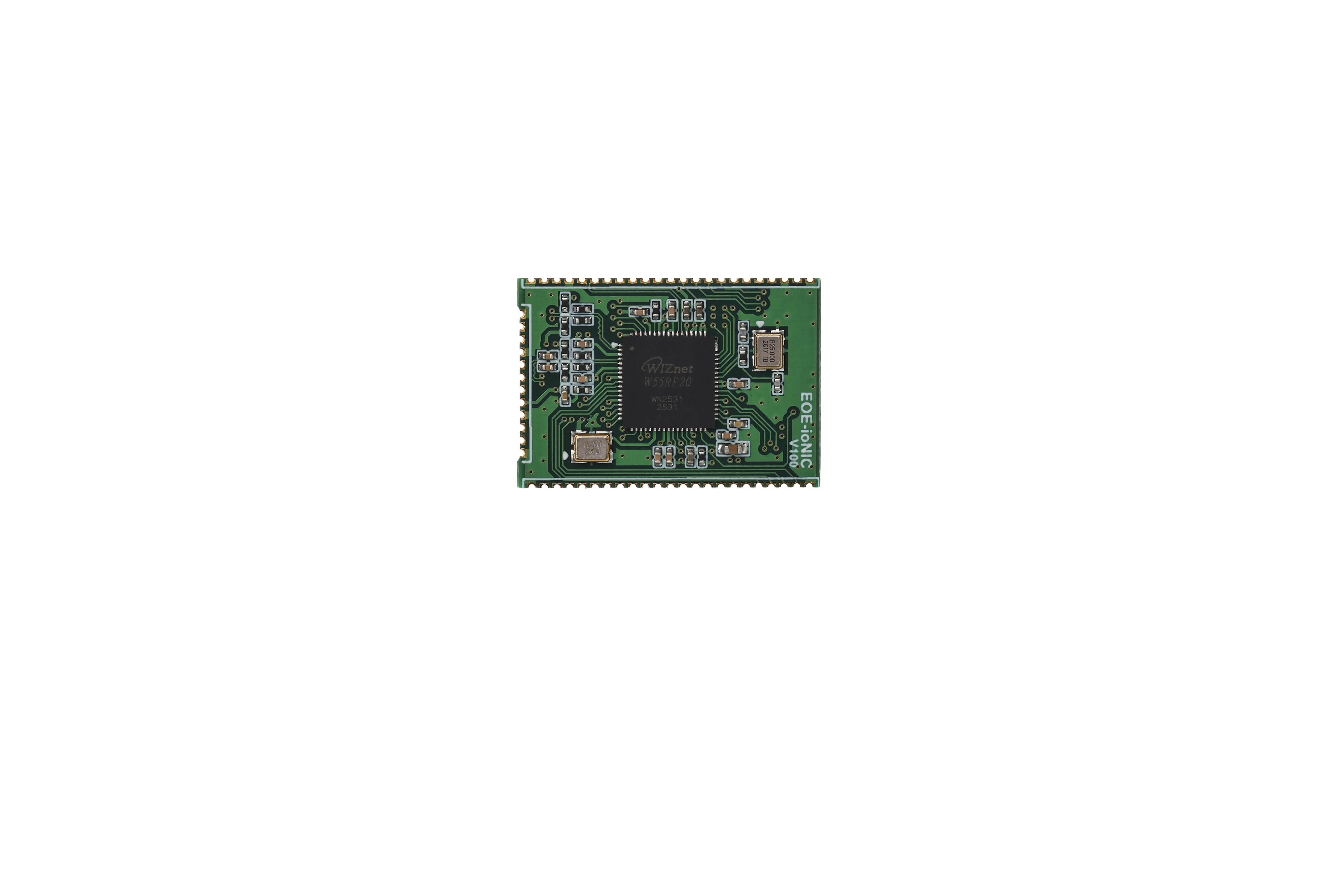

EOE-ioNIC
Overview
Specifications
| Item | Specification |
|---|---|
| Type | Serial-to-Ethernet System-on-Module |
| Main device | W55RP20 SiP: RP2040 MCU, W5500 hardwired TCP/IP controller, and 2 MB flash |
| Ethernet | 10/100 Mbps Ethernet |
| Host interface | UART or SPI, selected by SPI_IF_SEL |
| Serial interfaces | Two UART channels with modem-control signals |
| Debug | SWD and Debug UART |
| USB | Native USB signals are exposed on the module interface |
| Supply | 3.3 V single rail |
| Module interface | 70-pin castellated edge interface |
Documentation
| Document | Description |
|---|---|
| Datasheet (English) | Hardware specification and module interfaces |
| 데이터시트 (한국어) | 하드웨어 사양 및 모듈 인터페이스 |
| Configuration Tool Guide | Configuration Tool setup and use |
Related Products
| Product | Description |
|---|---|
| EOE-ioNIC-EVB | Evaluation board for EOE-ioNIC |
